Instrument Panel Center Bezel - Installation

INSTALLATION - AVENGER

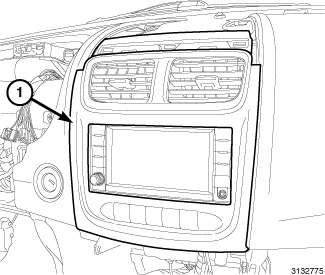

1. Connect and install the center trim bezel (1). Hand tap the perimeter to engage the retaining clips.

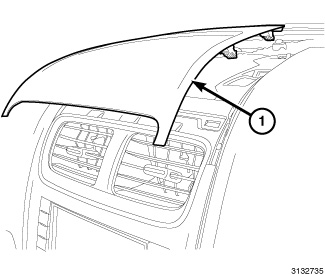

2. Install the center stack hood (1). Hand tap the perimeter to engage the retaining clips.

3. Connect the negative battery cable.
