Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge and Ram
>>
2013
>>
Challenger V6-3.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

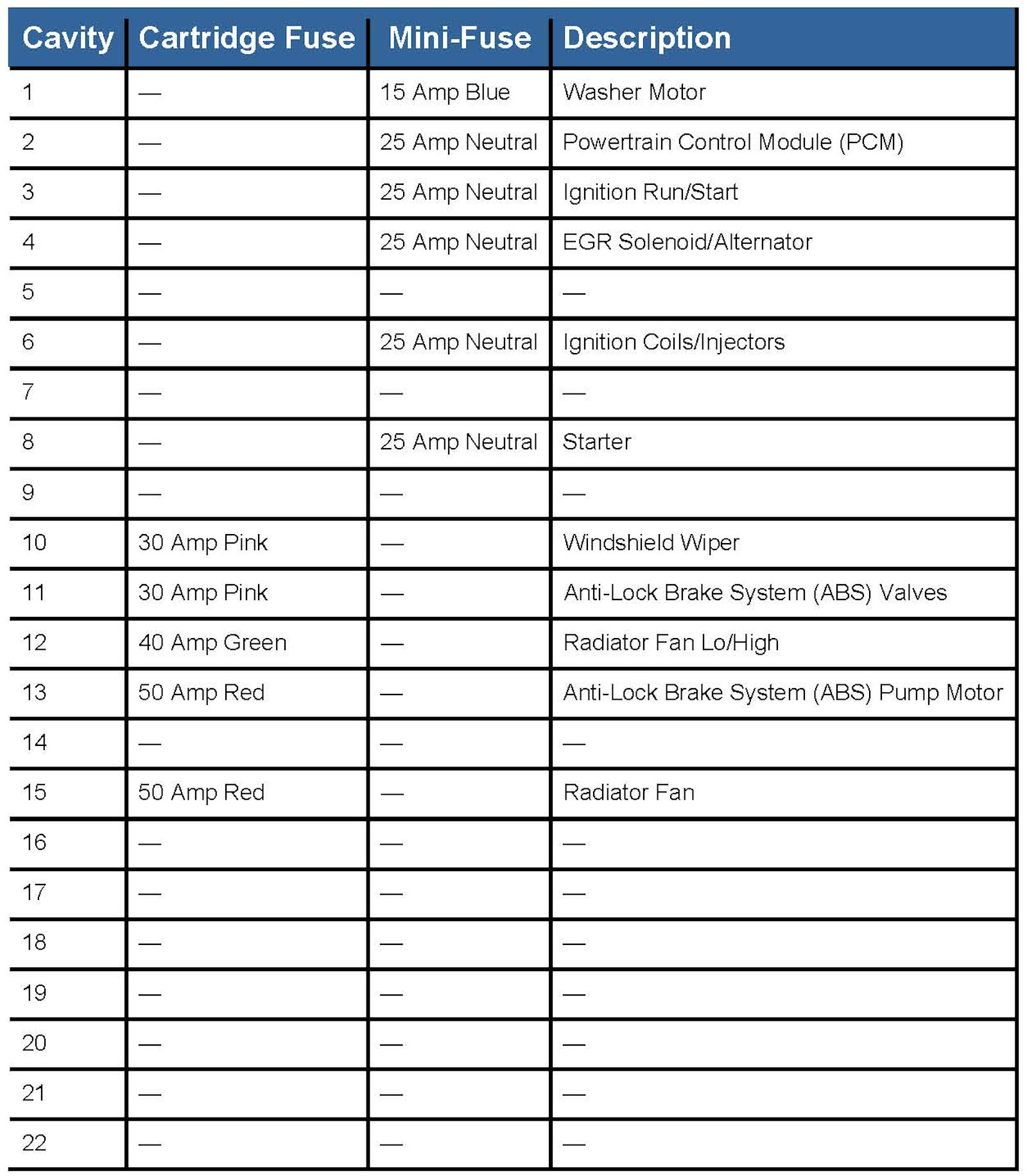

Integrated Power Module (IPM)
Integrated Power Module (IPM)
Integrated Power Module (IPM)
The Integrated Power Module (IPM) is located in the engine compartment.
