Hood Release Cable - Removal

REMOVAL






1. Remove the upper radiator crossmember, Radiator Crossmember - Removal.

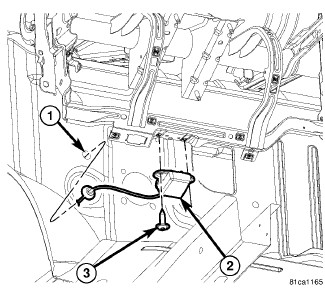

2. Separate the support clips (2) from the crossmember and the body.

3. Separate the grommet (1) from the cowl panel.





4. Remove the screws (3) and pull the cable and handle assembly (2) out from the cowl panel (1).
