Engine Controls - MIL ON, DTC P26AB Set
NUMBER: 18-017-13GROUP: Vehicle Performance
DATE: April 11, 2013
HELP USING THE wiTECH DIAGNOSTIC APPLICATION FOR FLASHING AN ECU IS
AVAILABLE BY SELECTING "HELP" THEN "HELP CONTENTS" AT THE TOP OF
THE wiTECH DIAGNOSTIC APPLICATION WINDOW.
THE wiTECH SOFTWARE LEVEL MUST BE AT RELEASE 13.03 OR HIGHER TO
PERFORM THIS PROCEDURE.
SUBJECT:
Flash: MIL Illumination P26AB- Engine Coolant Bypass Valve Stuck
OVERVIEW:
This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software.
MODELS:
2013 (DS) Ram 1500
NOTE:
This bulletin applies to vehicles equipped with a 3.6L engine (sales code ERB) built before March 20, 2013 (MDH 0320XX).
SYMPTOM/CONDITION:
A small number of customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further investigation the Technician may find that the following Diagnostic Trouble Code has been set:
^ P26AB - Engine Coolant Bypass Valve Stuck
DIAGNOSIS:
Using a Scan Tool (wiTECH) with the appropriate Diagnostic Procedures available in TechCONNECT, verify all engine systems are functioning as designed. If DTC's other than the one listed above are present record them on the repair order and repair as necessary before proceeding further with this bulletin.
If the customer describe the symptom/condition or if the technician finds the DTC, perform the Repair Procedure.

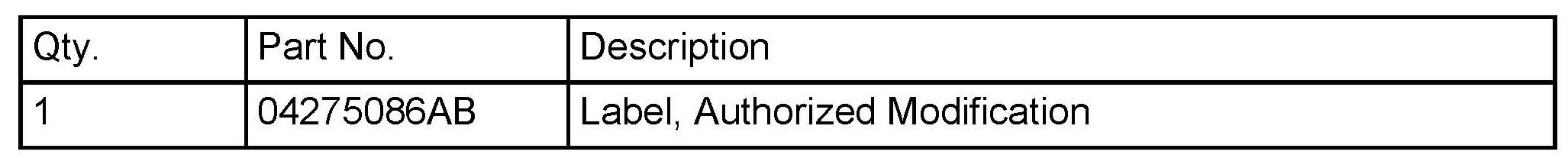

PARTS REQUIRED:
REPAIR PROCEDURE:
NOTE:
Install a battery charger to ensure battery voltage does not drop below 13.2 volts. Do not allow the charging voltage to climb above 13.5 volts during the flash process.
NOTE:
If this flash process is interrupted/aborted, the flash should be restarted.
1. Reprogram the PCM with the latest software. Follow the detailed service procedures available in DealerCONNECT/TechCONNECT, Refer To Group 8 - Electrical > Electronic Control Modules - Service Information > Module - Powertrain Control > Standard Procedures > PCM/ECM Programming.
2. After PCM reprogramming, the following must be performed:clear any DTC's that may have been set in other modules due to reprogramming. The wiTECH application will automatically present all DTCs after the flash and allow the tech to clear them.
3. Type the necessary information on the "Authorized Modification Label" and attach it near the VECI label.
POLICY:
Reimbursable within the provisions of the warranty.

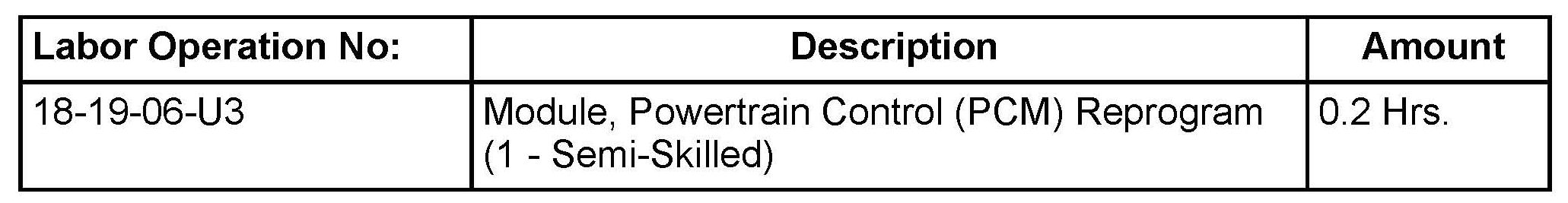

TIME ALLOWANCE:

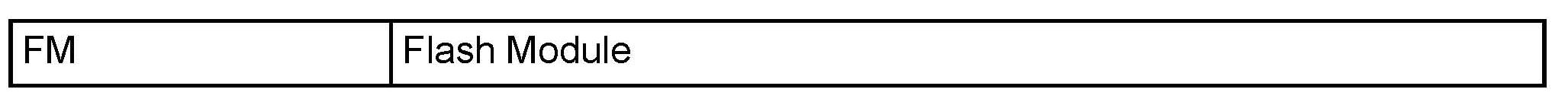

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
