B0050-12

B0050-12-DRIVER SEATBELT SENSOR-CIRCUIT SHORT TO BATTERY

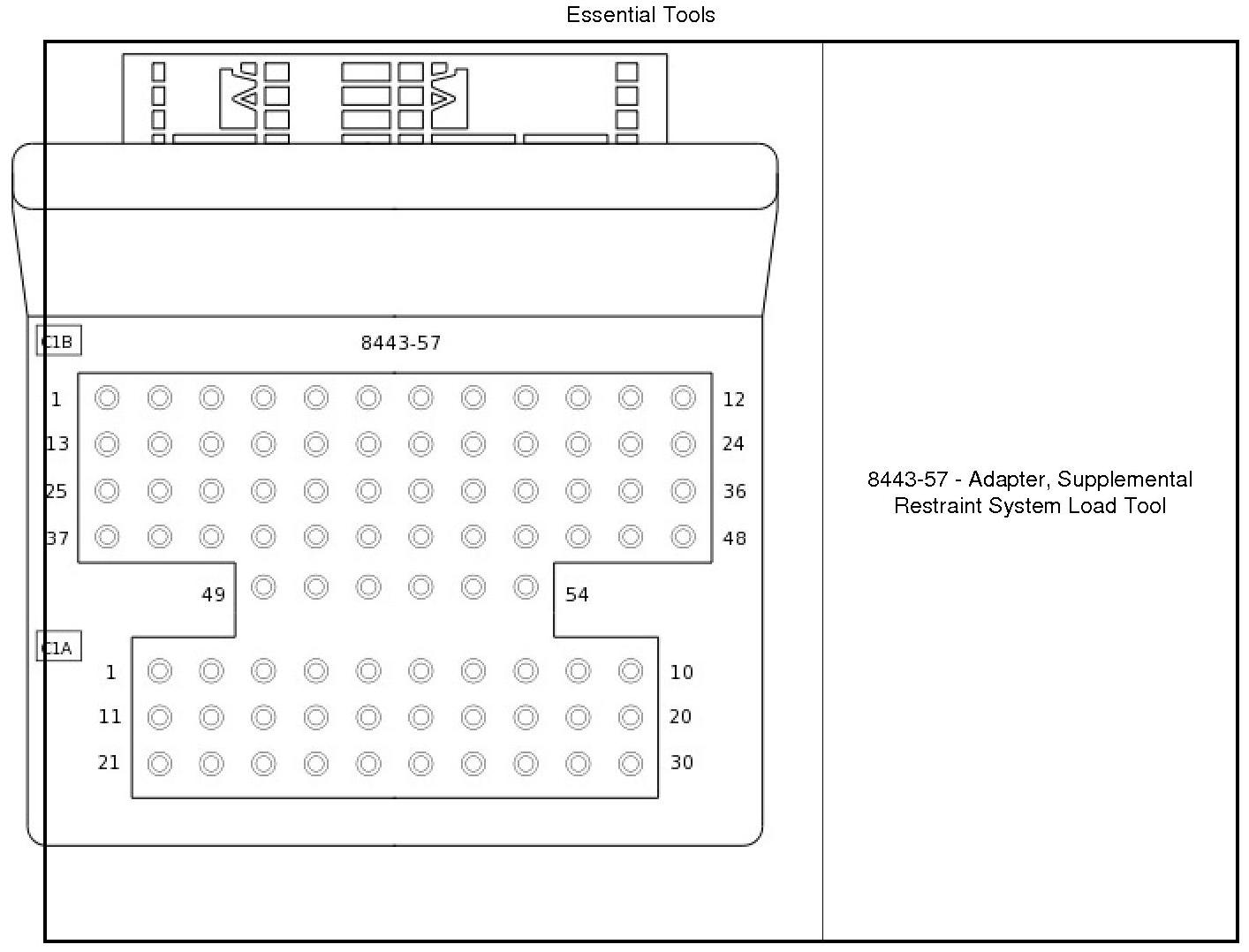

Special Tools:

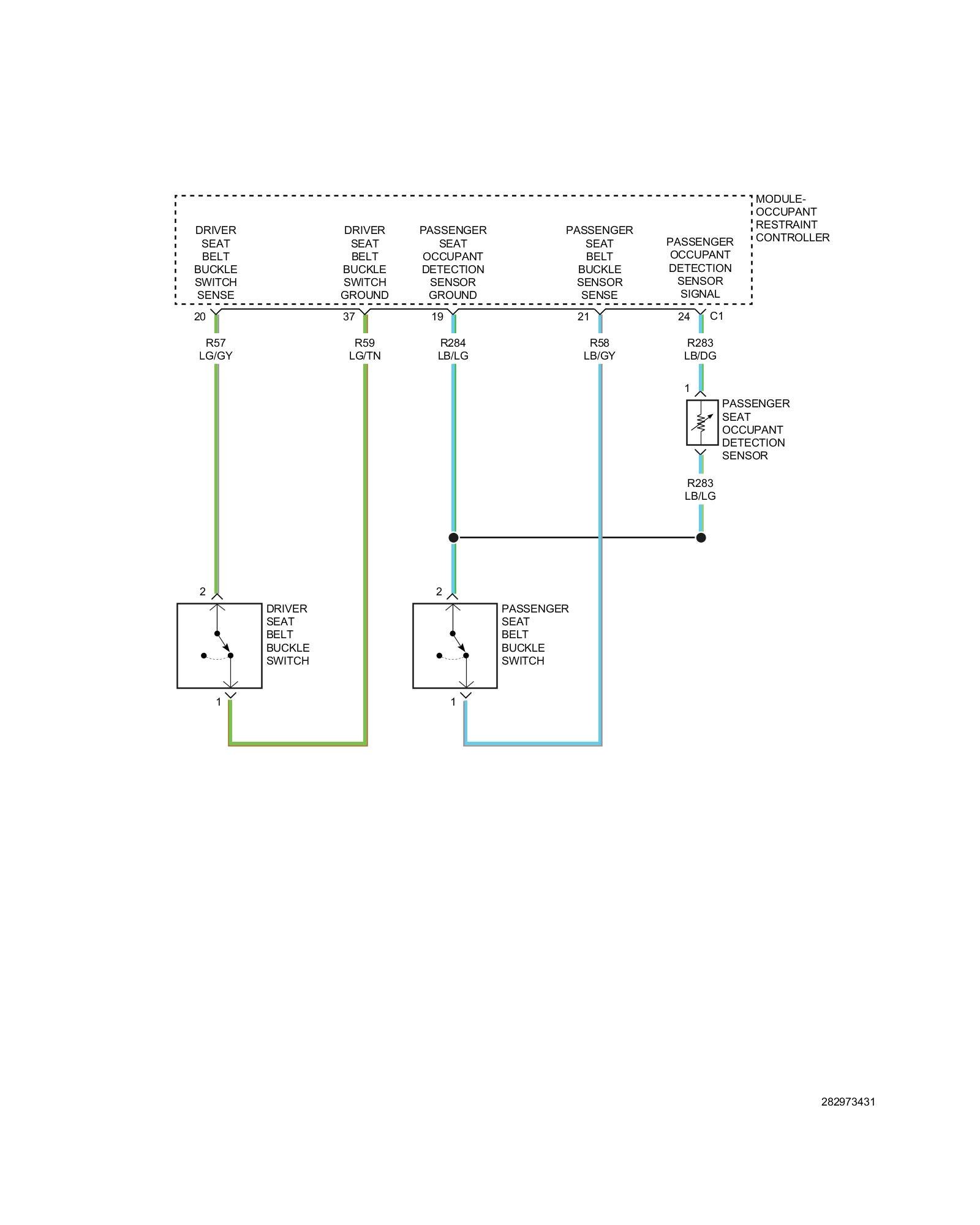

For a complete wiring diagram, refer to the Wiring Information.





Theory of Operation

When powered, the Occupant Restraint Controller (ORC) sends a test current across the Driver Seat Belt Buckle Switch circuits every 60 ms to verify the integrity of the switch and wiring. The DTC will set if the circuits are shorted to battery for 2.5 seconds and the code will transitions from active to stored when the current return to normal range for five seconds.

- When Monitored:
With the ignition on and the Occupant Restraint Controller (ORC) configured for a Driver Seat Belt Buckle Switch. The ORC monitors the switch input current ranges.

- Set Condition:
If the ORC detects a short to voltage on the Driver Seat Belt Buckle Switch circuits.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

Diagnostic Test

1. VERIFY ACTIVE DTC

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC DTC.

Does the scan tool display active B0050-12-DRIVER SEATBELT SENSOR - CIRCUIT SHORT TO BATTERY DTC?

Yes

- Go To 2

No

- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. Restraints System Intermittent Condition Test.

2. CHECK DRIVER SEAT BELT BUCKLE SWITCH SHORT TO VOLTAGE





WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Driver Seat Belt Buckle Switch harness connector.
2. Disconnect the ORC harness connectors.

NOTE: Check connectors - Clean and repair as necessary.

3. Connect the SRS Load Tool Adapter (8443-57) to the ORC harness connectors.

WARNING:
Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Measure the voltage on the (R57) Driver Seat Belt Buckle Switch Sense circuit between the Driver Seat Belt Buckle Switch harness connector cavity 2 and ground.
5. Measure the voltage on the (R59) Driver Seat Belt Buckle Switch Ground circuit between the Driver Seat Belt Buckle Switch harness connector cavity 1 and ground.

Is there a short to voltage on any of these circuits?

Yes

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Repair the (R57, R59) Driver Seat Belt Buckle Switch circuit for a short to voltage.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 3

3. CHECK OPERATION OF THE DRIVER SEAT BUCKLE BELT SWITCH

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Replace the Driver Seat Belt Buckle Switch.
2. Reconnect the vehicle body harness connector to the Driver Seat Belt Buckle Switch.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.

WARNING:
Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored DTCs.
6. Turn the Ignition OFF, and wait 15 seconds before turning the Ignition ON.
7. Wait one minute, and read active DTCs and if there are none present read the stored DTCs.

Does the scan tool display active B0050-12-DRIVER SEATBELT SENSOR - CIRCUIT SHORT TO BATTERY DTC?

Yes

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING:
If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the ORC module. Occupant Restraint Controller - Removal
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Repair is complete.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
