Air Suspension Control Module (ASCM)

U0415-00-IMPLAUSIBLE DATA RECEIVED FROM ABS

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on for four seconds, no CAN BUS circuit error condition present, no lost communication with ABS condition present, and no system undervoltage or overvoltage condition present.

- Set Condition:
The Air Suspension Control Module (ASCM) is receiving implausible data for vehicle speed, wheel speeds, brake switch status, longitudinal acceleration, yaw rate, or lateral acceleration from the ABS Module.





Diagnostic Test

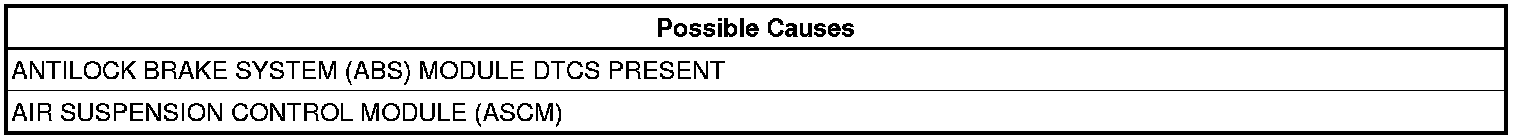

ABS MODULE DTCS PRESENT
1. Ignition on, engine not running.
2. With the scan tool, read DTCs in the ABS Module.

Are there any DTCs present?

Yes

- Perform the appropriate diagnostic procedure. A L L Diagnostic Trouble Codes ( DTC ).

No

- Replace the Air Suspension Control Module (ASCM). Air Suspension Control Module - Removal.
- Perform the ASCM VERIFICATION TEST. ASCM Verification Test.
