Instrument Cluster - Removal

REMOVAL

1. Disconnect and isolate the negative battery cable.

2. Remove the cluster bezel from the instrument panel. Instrument Cluster Bezel - Removal.

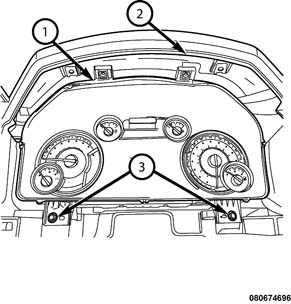

3. Remove the two screws (3) that secure the instrument cluster (1) to the instrument panel (2).





4. Pull the instrument cluster rearward far enough to access and disconnect the instrument panel wire harness connector (2) from the connector receptacles on the back of the cluster (1) housing.

5. Remove the instrument cluster from the instrument panel.
