Removal

REMOVAL

NOTE:
If equipped with adjustable pedals: When replacing the components both pedal assemblies must be in the fully down position toward the floor for proper adjustment. Pedals can be moved manually by rotating the cable on the component not being replaced. New components come in the correct position until activated.

1. Remove the pedal assembly, Brake and/or Accelerator Pedals - Removal






NOTE:

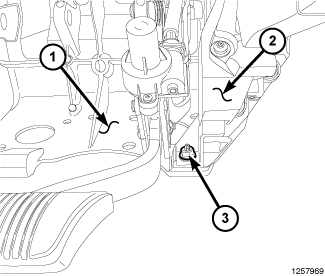

The adjustable pedal motor has three locking tabs (3) that prevent easy twisting when removing drive cable from housing.

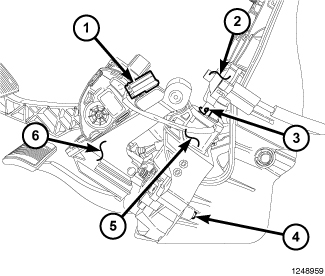

2. Disconnect the drive cable (2) from the adjustable pedal motor (5) by twisting clockwise and lifting from motor.





3. Remove the accelerator subassembly bracket mounting nut (3).





4. Remove the accelerator subassembly mounting screw (4).

5. Remove the accelerator subassembly (6).
