Front Door Trim Panel - Installation

INSTALLATION

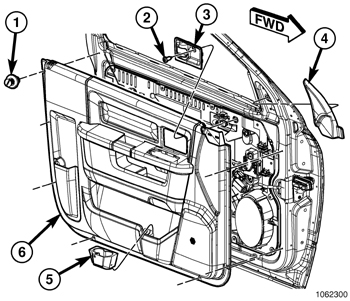

1. Position the lower end of the trim panel (6) to the carrier plate on the inner door aligning the hooks on the back of the panel to the slotted holes in the carrier. Then, using a rotating arc motion, feed the lock knob through the hole at the upper rear corner of the trim panel, and align and push down the trim panel to seat the hooks into the holes in the carrier plate.

NOTE:
Make sure the upper flange of trim is fully seated into inner belt molding.

2. Install the plastic push pins (1) around the perimeter of the panel and seat fully.

3. Install the interior handle bezel (3) and install the screw (2).

4. Position the mirror flag (4) onto the door and seat the clips fully.

5. If equipped, verify that the window handle clip is installed correctly and seat the handle onto the window regulator shaft fully.





NOTE:
Rear door switch shown, front doors are similar.

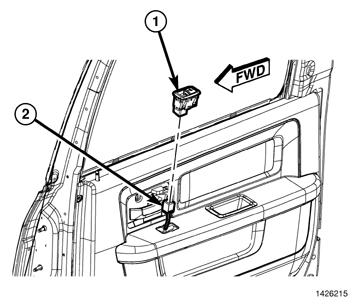

6. If equipped, connect the window switch electrical connectors (2) and seat the window switch/bezel into the door trim fully.
