Powertrain Management: Application and ID

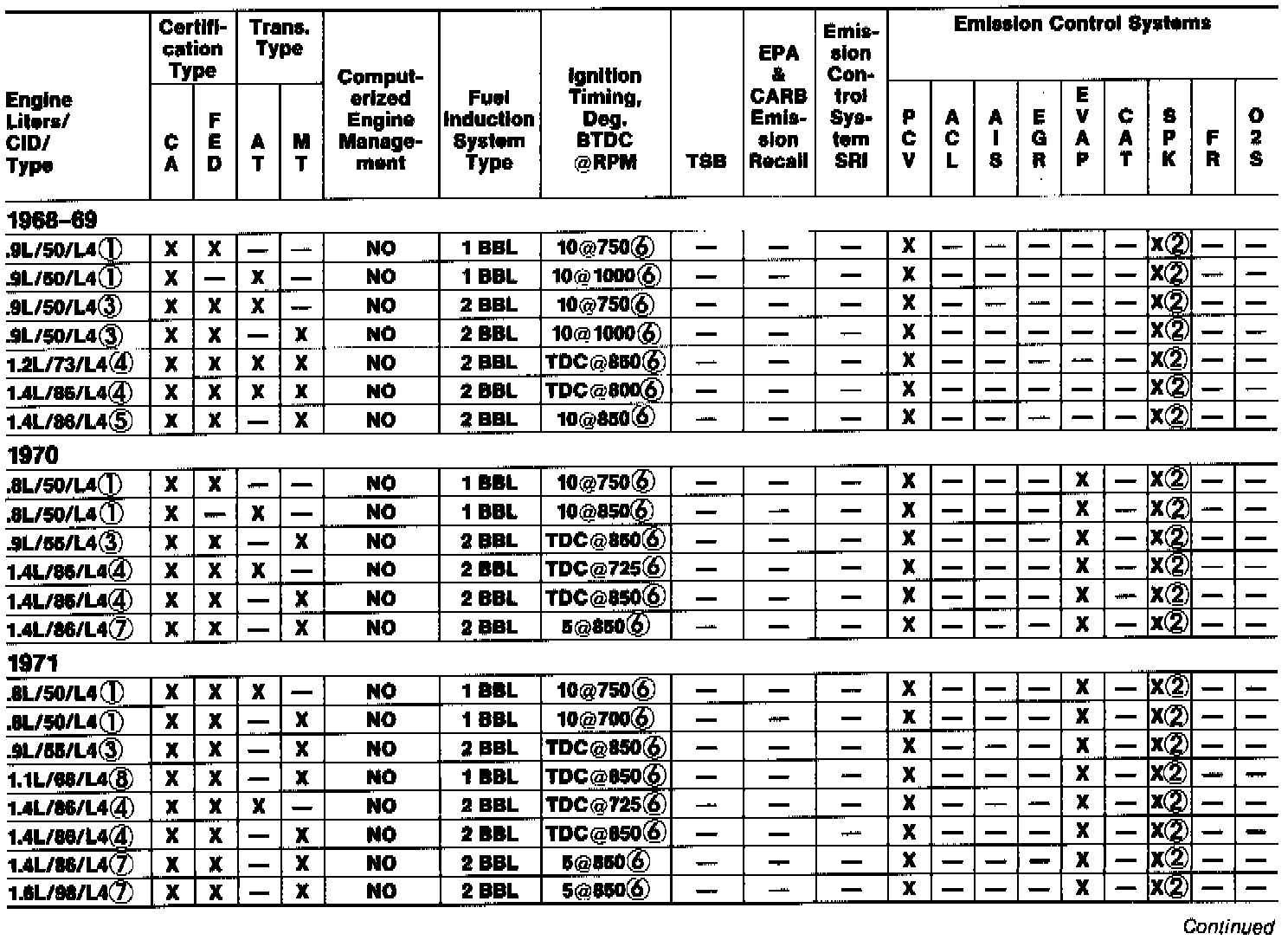

1968 - 1971

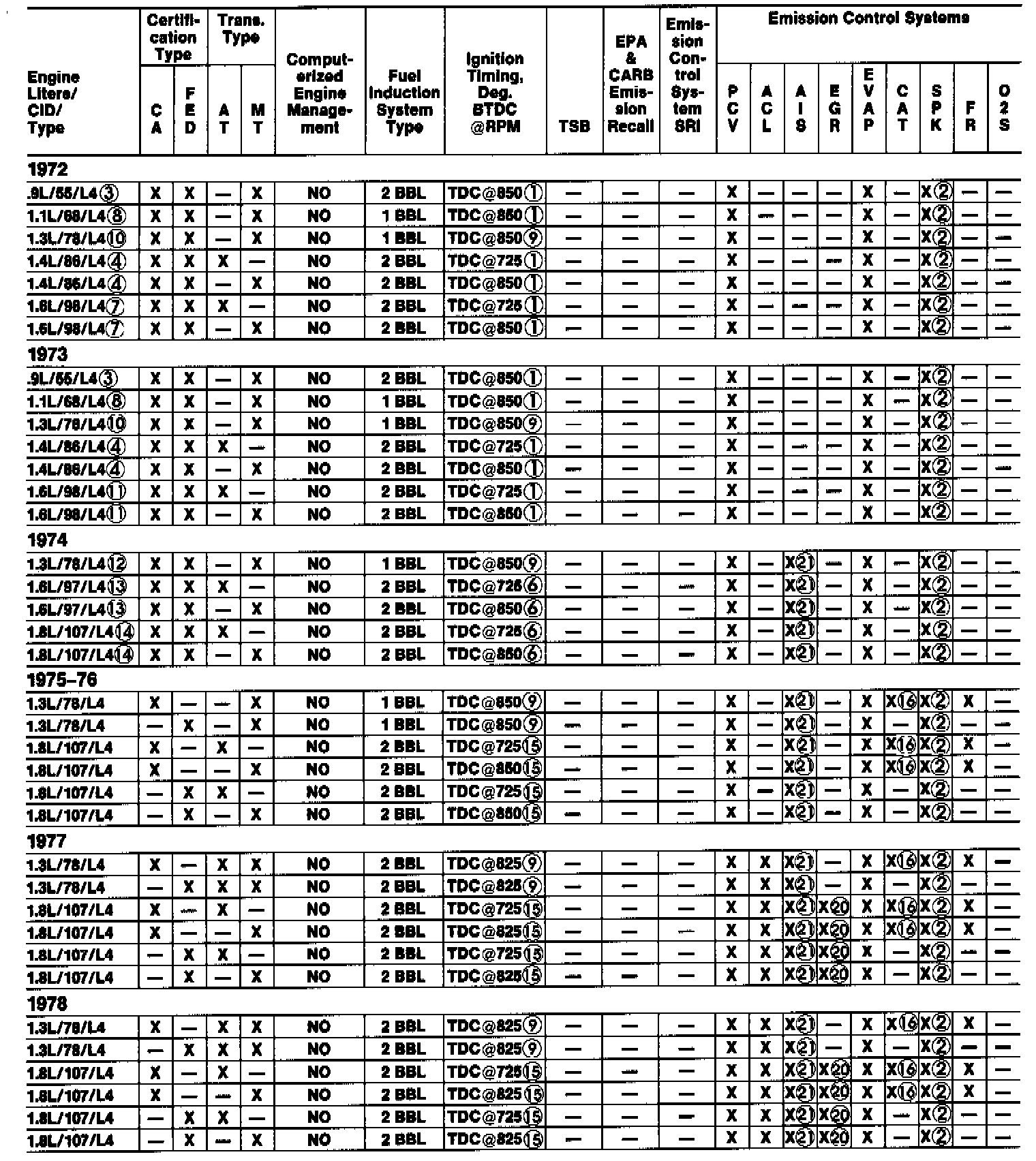

1972 - 1978

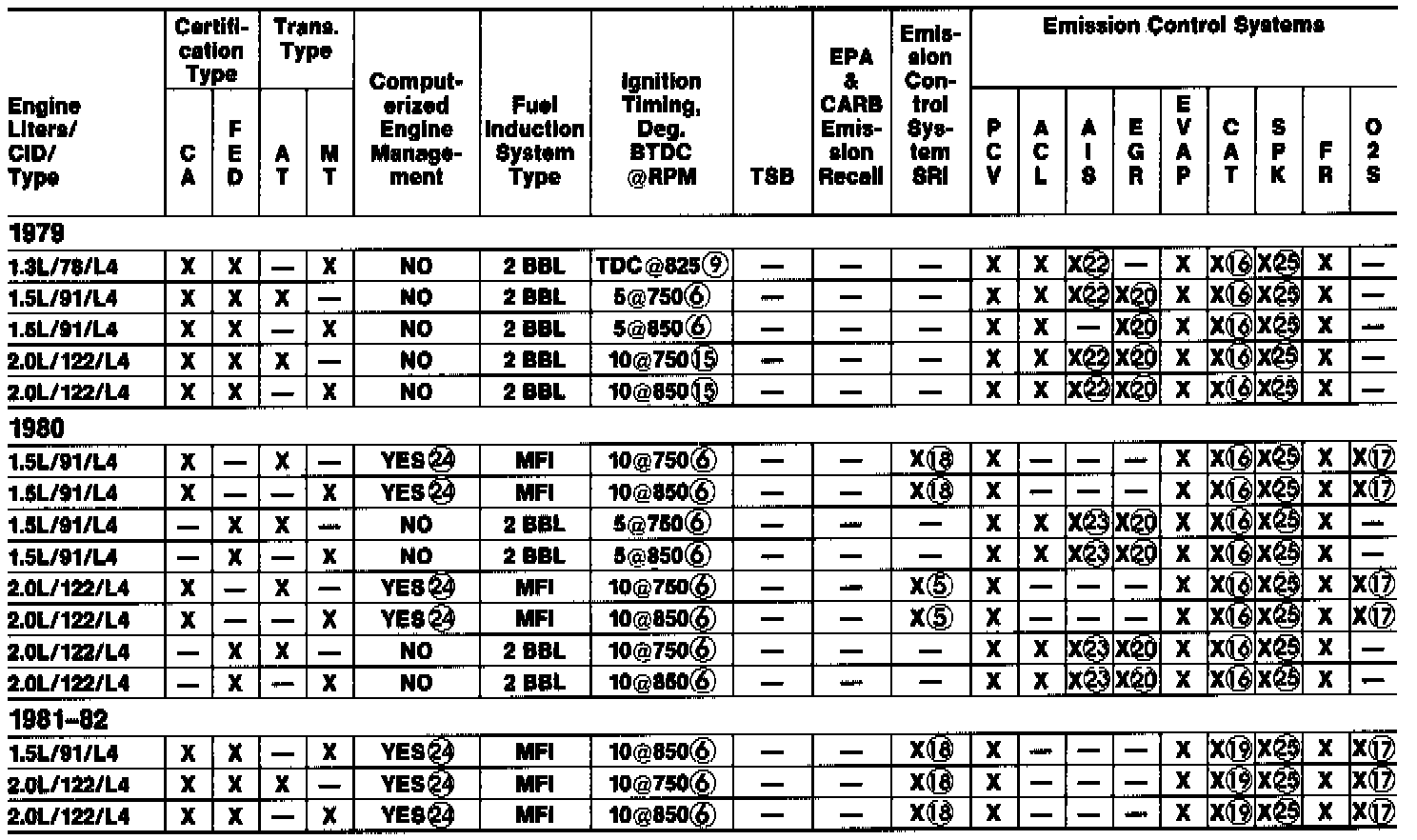

1979 - 1982


Footnotes:

X - Equipped

- Not Equipped

1 - 850 Sedan.

2 - DI/Breaker Point Type.

3 - 850 Coupe & Spider.

4 - 124 sedan & wagon.

5 - 124 Sport.

6 - Timed at No. 1 cylinder.

7 - 124 S & SC.

8 - 128 sedan & wagon.

9 - Timed at No. 1 cylinder w/distributor vacuum retard hose connected.

10 - 128 SL.

11 - 124 Spider.

12 - 128 & X1/9.

13 - 124.

14 - 124 & Spider.

15 - Timed at No. 1 cylinder w/jumper wire connected between ignition relay power & run terminals. The ignition relay is located near the right hand fender well. Remove cover prior to connecting jumper wire.

16 - Type, OC; number of catalytic converters, 1.

17 - One 02S.

18 - 02S maintenance lamp.

19 - Type, TWC; number of catalytic converters, 1.

20 - Conventional EGR system. Refer to EGR Functional Test Procedure.

21 - Pump type.

22 - CA, pump type; FED, pulse type.

23 - Pulse type.

24 - Bosch L-Jetronic.

25 - DI/Breakerless.
