Turbocharger - Lubrication System Defect

84fiat01

S.L. 103-9

5-30-84
SUBJECT:
TURBOCHARGER LUBRICATION SYSTEM

VEHICLES: ALL LEGEND INDUSTRIES TURBO SPIDERS

CONDITION: Excessive amount of lubricant entering turbocharger bearing chamber.

CAUSE: Oversized orifice in union connecting oil supply line to turbocharger.



SERVICE

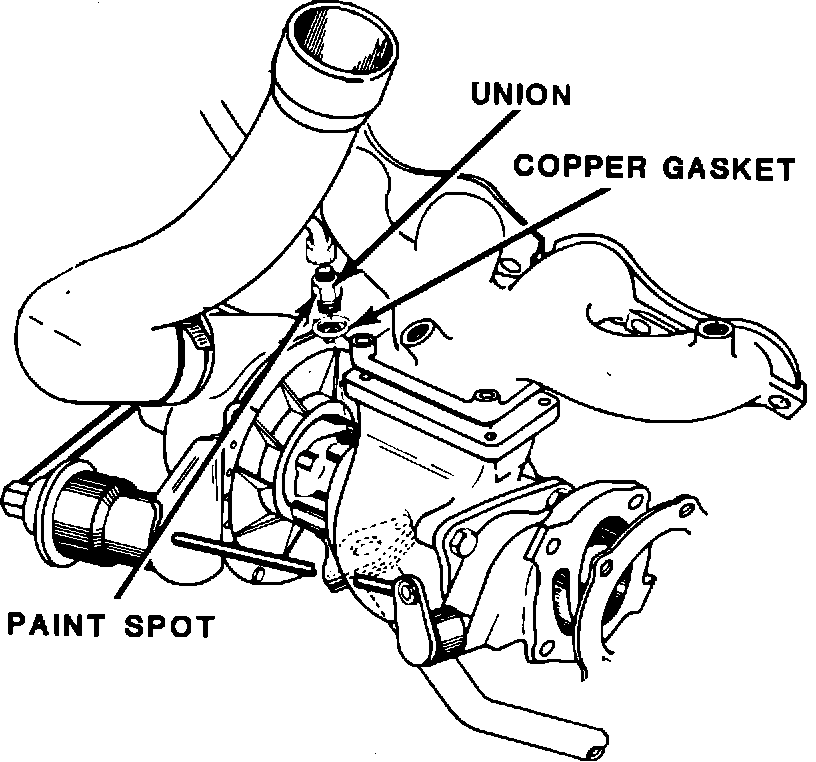

INFORMATION: It is recommended, whenever a Turbo Spider is in your shop for servicing, that this union be checked. Disconnect the oil inlet hose at the union and check that the orifice measures 0.080 in. (+/- .015 in.). If not replace with the correct union and a new gasket. Mark the union with a paint spot on one of the flats to signify that the union has been checked and is the correct size.
PARTS
INFORMATION: The correct union and gasket are available from your Parts & Accessories Distribution Center.

PART NO. DESCRIPTION

5046 UNION

5078 GASKET

WARRANTY
INFORMATION: Replacement of the union is reimbursable on a Warranty Claim.

Use special Labor Operation No. 1028018

Labor time = .5

Malfunction Code = 0654370518
