Instrument Panel Center Bezel - Installation

INSTALLATION





1. Position the center trim bezel (1) near the instrument panel cover and connect the harness to the switch pod.
2. Align the center trim bezel (1) and hand tap to engage the retaining clips.
3. Open the glove box door, install the center trim bezel's retaining screw located on the upper right edge of the glove box cavity. Tighten the screw securely.

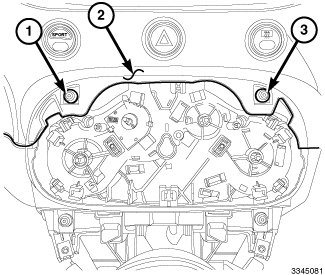

4. Install the two screws (1 and 3) that secure center trim bezel (2) to the instrument panel cover. Tighten the screws securely.
5. Install the A/C heater control panel A/C And Heater Control - Installation.
6. Reconnect the negative battery cable.
