A/C Compressor - Description

DESCRIPTION

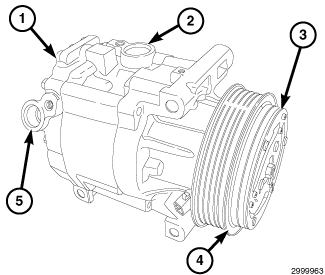

The A/C compressor (1) is a fixed displacement type compressor that uses an electromagnetic field coil and a clutch plate (3) to engage the drive pulley (4) to the compressor shaft.

The A/C compressor has the suction port (2) located on the top of the housing, and the discharge port (5) located on the cylinder head, at the rear of the compressor.

The A/C compressor has a label identifying the use of only R-134a refrigerant and ND-8 PAG oil.
