Spark Plug - Removal

REMOVAL

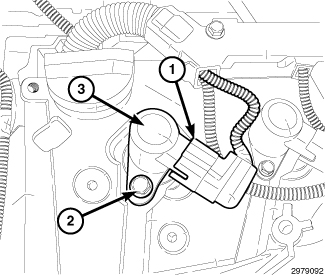

NOTE: Number 1 cylinder ignition coil shown, all others similar.

1. Remove the ignition coil (2) Ignition Coil - Removal.





2. Prior to removing the spark plug, spray compressed air into the cylinder head opening. This will help prevent foreign material from entering the combustion chamber.

CAUTION: The spark plug tubes (1) are a thin wall design. Avoid damaging the spark plug tubes. Damage to the spark plug tube can result in oil leaks.

3. Remove the spark plug from the cylinder head using a quality thin wall socket with a rubber or foam insert.
4. Inspect the spark plug condition.
