Instrument Panel Lower Bezel - Installation

INSTALLATION

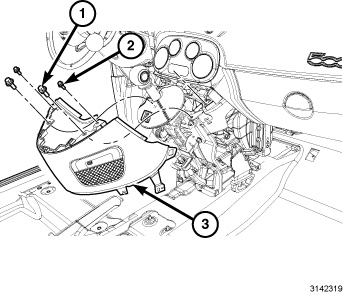

1. Position the lower instrument panel bezel (3).
2. Install the screws (1, 2) securing the lower instrument panel bezel (3). Tighten the screws securely.





3. Position the gear shift indicator bezel (3) and connect the window switches (1) to their harnesses (4).
4. Align the gear shift indicator bezel (3) and hand tap to engage it's retaining tabs (2).
5. Install the floor console,Floor Console - Installation.
