Oil Pressure Switch - Removal
REMOVAL
NOTE: The oil pressure switch has a lock patch on the threads and if removed can not be reinstalled.
1. Disconnect and isolate the negative battery cable.

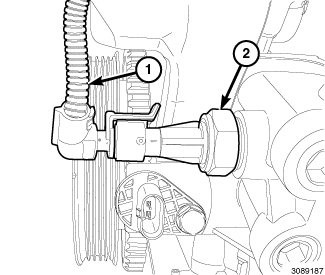

2. Disconnect the oil pressure switch electrical connector (1).
3. Remove the oil pressure switch (2) from the oil pump housing.
