Cargo Lamp - Removal

LAMP





1. Disconnect and isolate the battery negative cable.

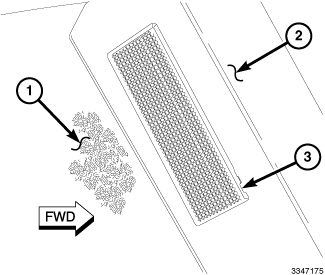

2. Locate the cargo lamp (3) in the rear edge of the left quarter trim panel (2) near the trunk side trim panel (1).
3. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the notched lower end of the cargo lamp lens to disengage the lower end of the lamp housing from the mounting hole in the quarter trim panel.
4. Pull the upper end of the lamp housing out of the mounting hole far enough to access and disconnect the body wire harness connector from the lamp connector receptacle.
5. Remove the cargo lamp from the vehicle.
