Fog Lamp - Removal

LAMP





1. Disconnect and isolate the battery negative cable.

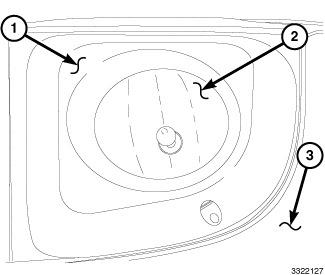

2. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the bezel (1) away from the front fascia (3) and the fog lamp (2) far enough to disengage the snap clips that secure it.

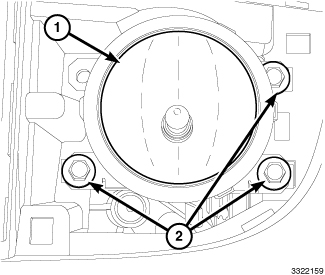

3. Remove the three screws (2) that secure the fog lamp (1) to the front fascia.
4. Pull the fog lamp away from the front fascia far enough to access and disconnect the wire harness connector from the bulb connector receptacle on the back of the lamp housing.
5. Remove the fog lamp from the fascia.
