Tail Stop Turn Lamp - Removal

LAMP





1. Disconnect and isolate the battery negative cable.

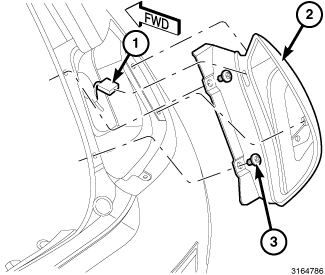

2. Open the liftgate to access and remove the two screws (3) that secure the rear lamp unit (2) to the side trough of the liftgate opening.
3. Pull the outboard side of the rear lamp unit rearward far enough to unsnap the two ball studs on the outboard side of the lamp housing from the two grommets in the quarter outer panel.
4. Pull the lamp away from the vehicle far enough to access and disconnect the body wire harness connector (1) from the socket plate connector receptacle on the back of the lamp housing.
