Battery - Installation
INSTALLATION 1.
Install the battery (2) into the vehicle.
2.
Install the battery hold down retainer.
3.

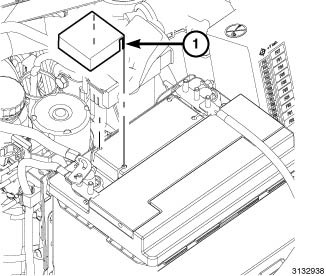

Install the battery thermo cover (1).
4.
Connect the positive
battery cable (1).
5.
Connect the negative
battery cable (2).
6.
Install the positive battery terminal cover (1).
