Transmission Input Shaft - Disassembly

DISASSEMBLY

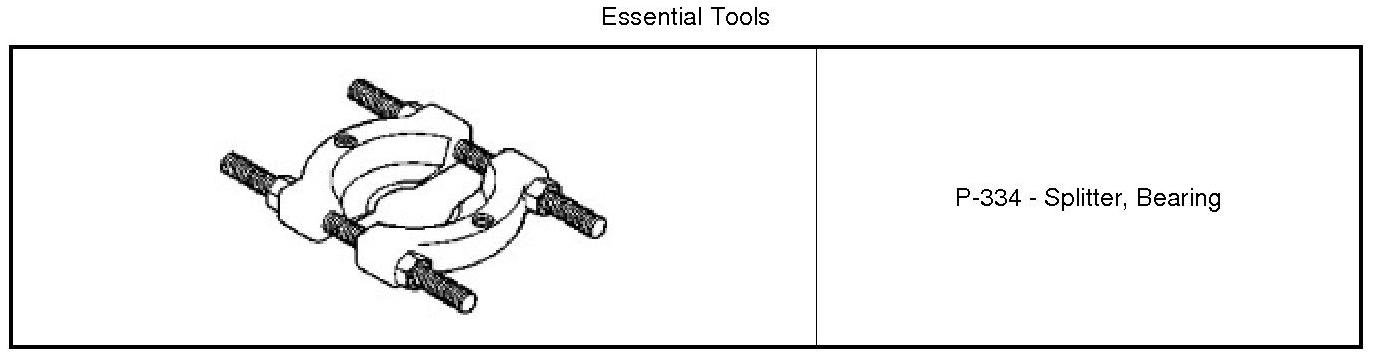

Special Tools:

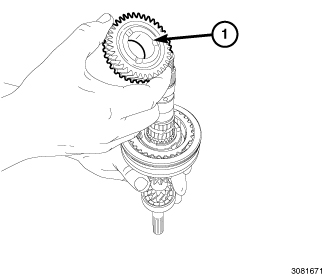

1. Remove the forth driven gear from the shaft.

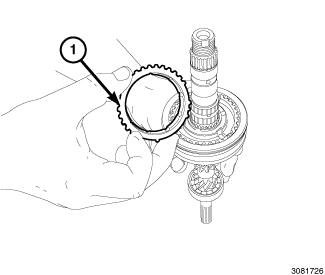

2. Remove the blocker ring from the synchronizer hub.

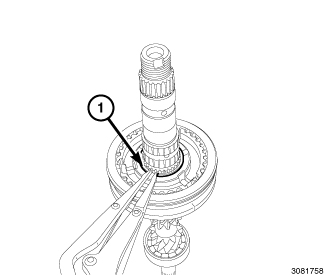

3. Remove the snap ring.





4. Remove the slider ring and spring loaded detents from the hub.

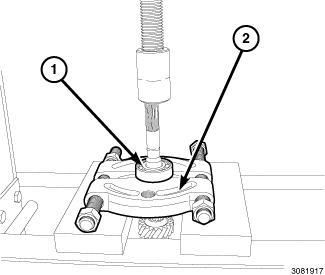

5. Remove the hub and the third gear from the shaft using Bearing Splitter (P-334).





6. Remove the main shaft front bearing using Bearing Splitter (P-334).
