Tightening Specifications

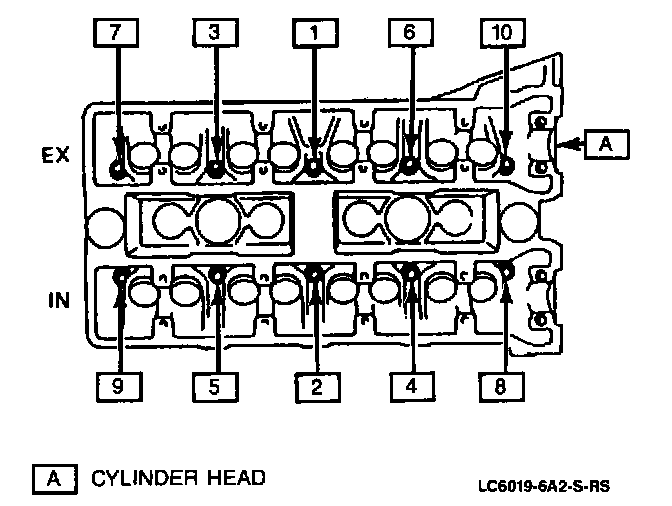

Cylinder Head Bolt Tightening Sequence:






Cylinder head bolts 60 N.m (44 lb.ft.)
