With Power Steering
Air Conditioning AmplifierA/C Amplifier Harness W/Power Steering:
Inspect Amplifier Circuit
^

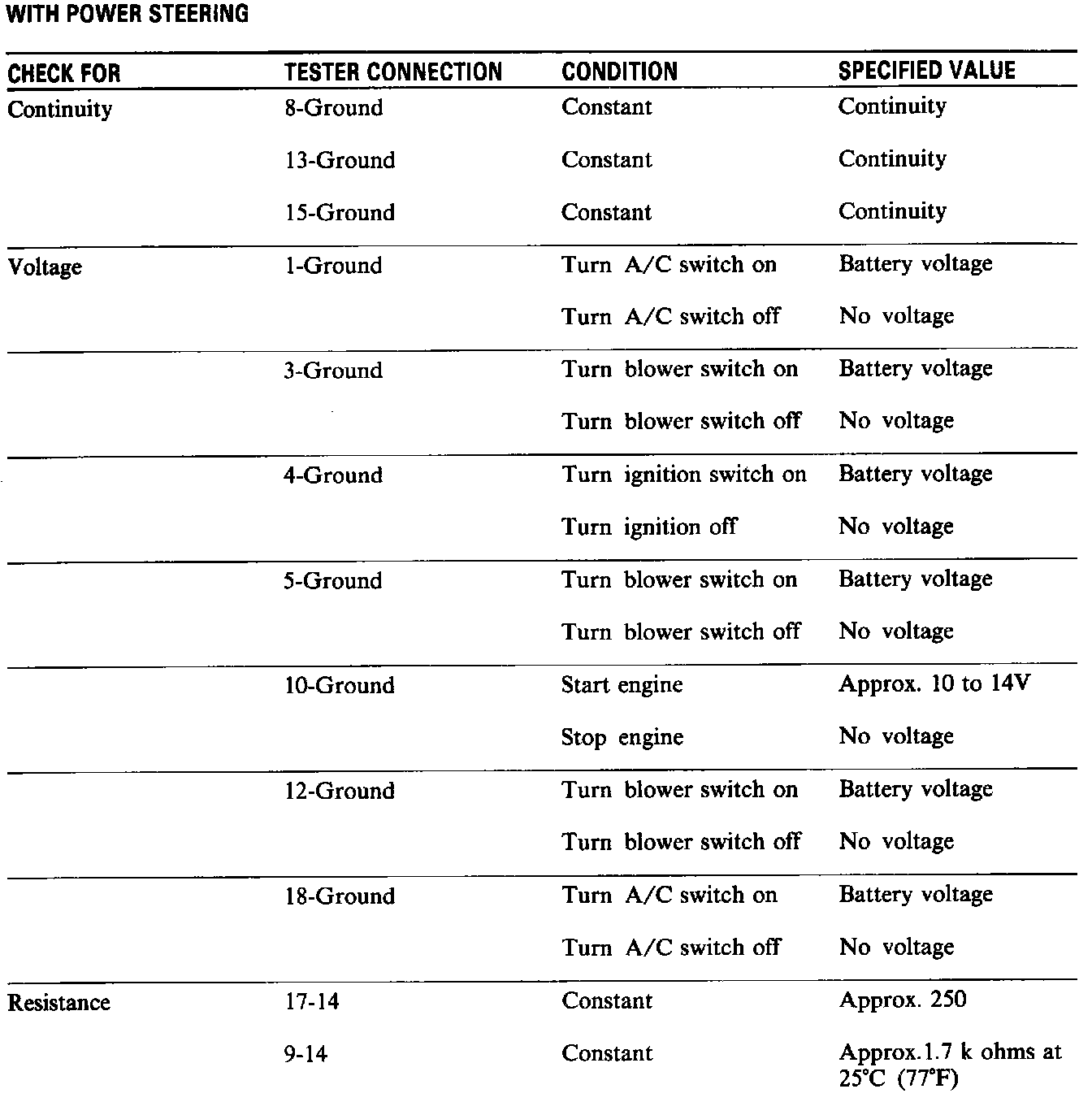

Disconnect amplifier and inspect the connector on the wire-harness side as shown in the chart.
Test Conditions
^
Ignition: "ON"
^
Temperature Control Level: "MAX COOL"
^
Blower Switch: "HIGH"
If the harness circuit is correct and the amplifier is malfunctioning, replace the amplifier.
