Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1990
>>
Prizm L4-1600cc 1.6L DOHC VIN 5
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
>>
Base Models
Base Models

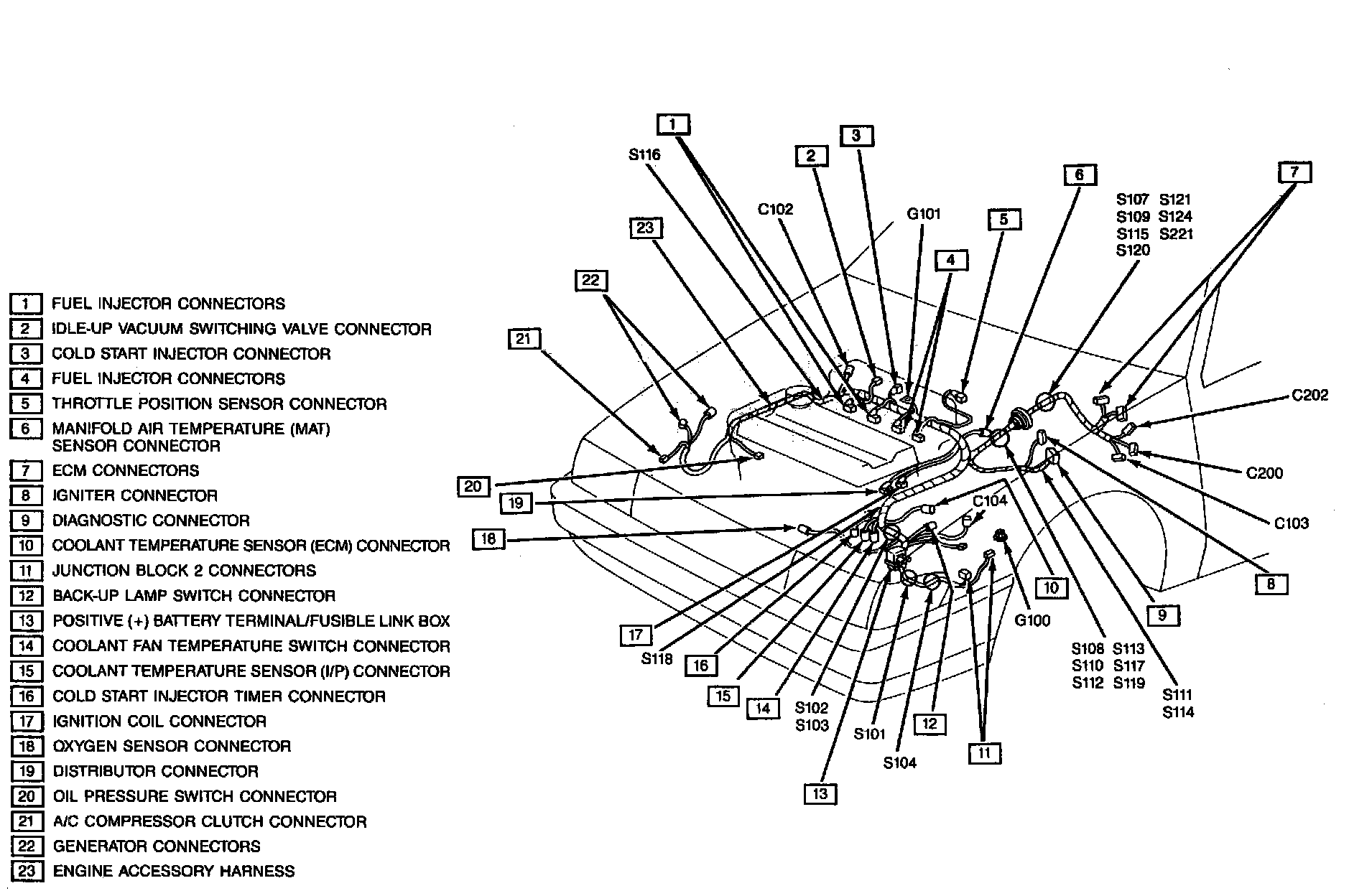

Engine Wiring (Base):
On LH Strut Tower [9]
