Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1990
>>
Prizm L4-1600cc 1.6L DOHC VIN 6
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
>>
GSi Models
GSi Models

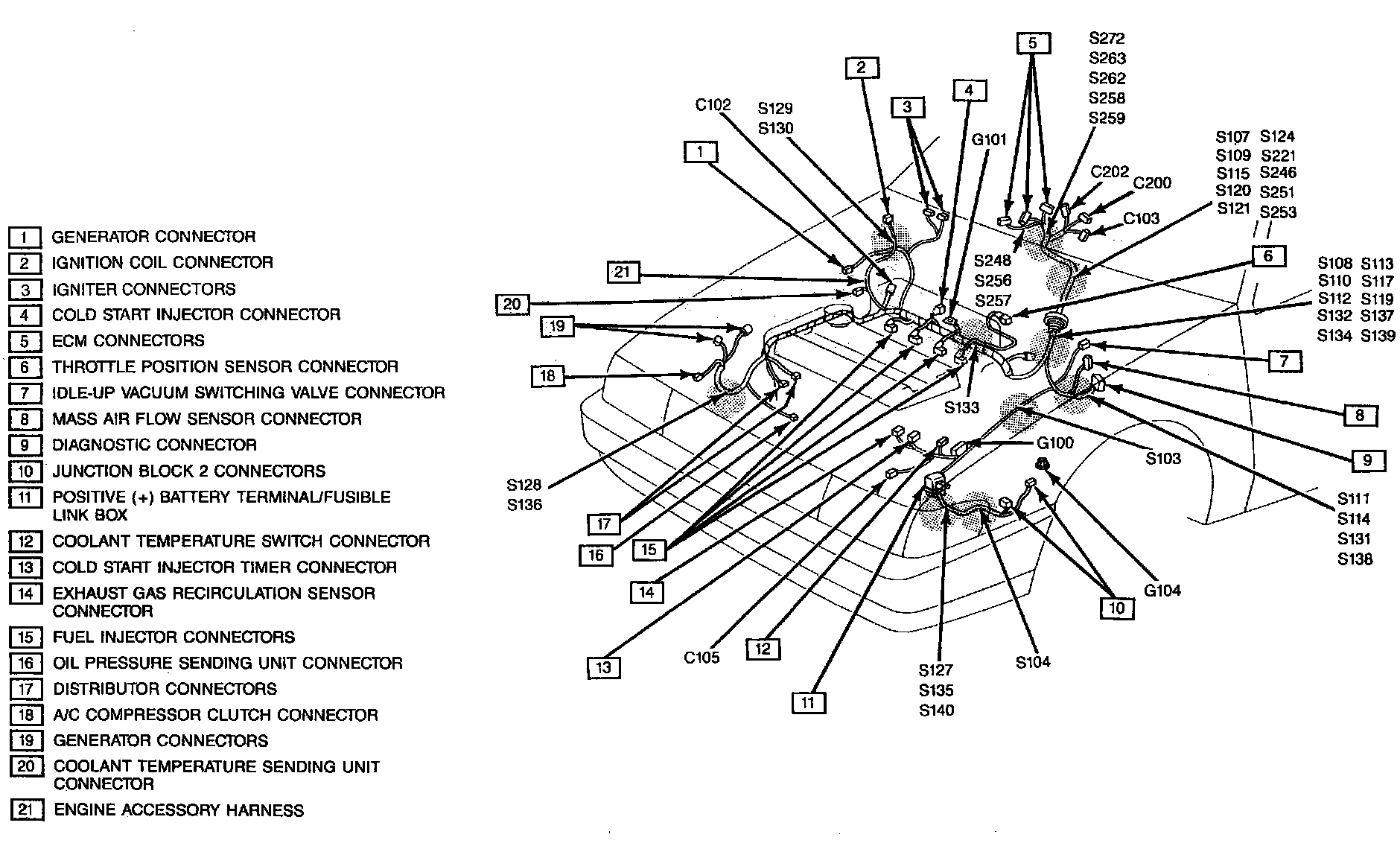

Engine Wiring (GSi):
On LH Strut Tower [9]
