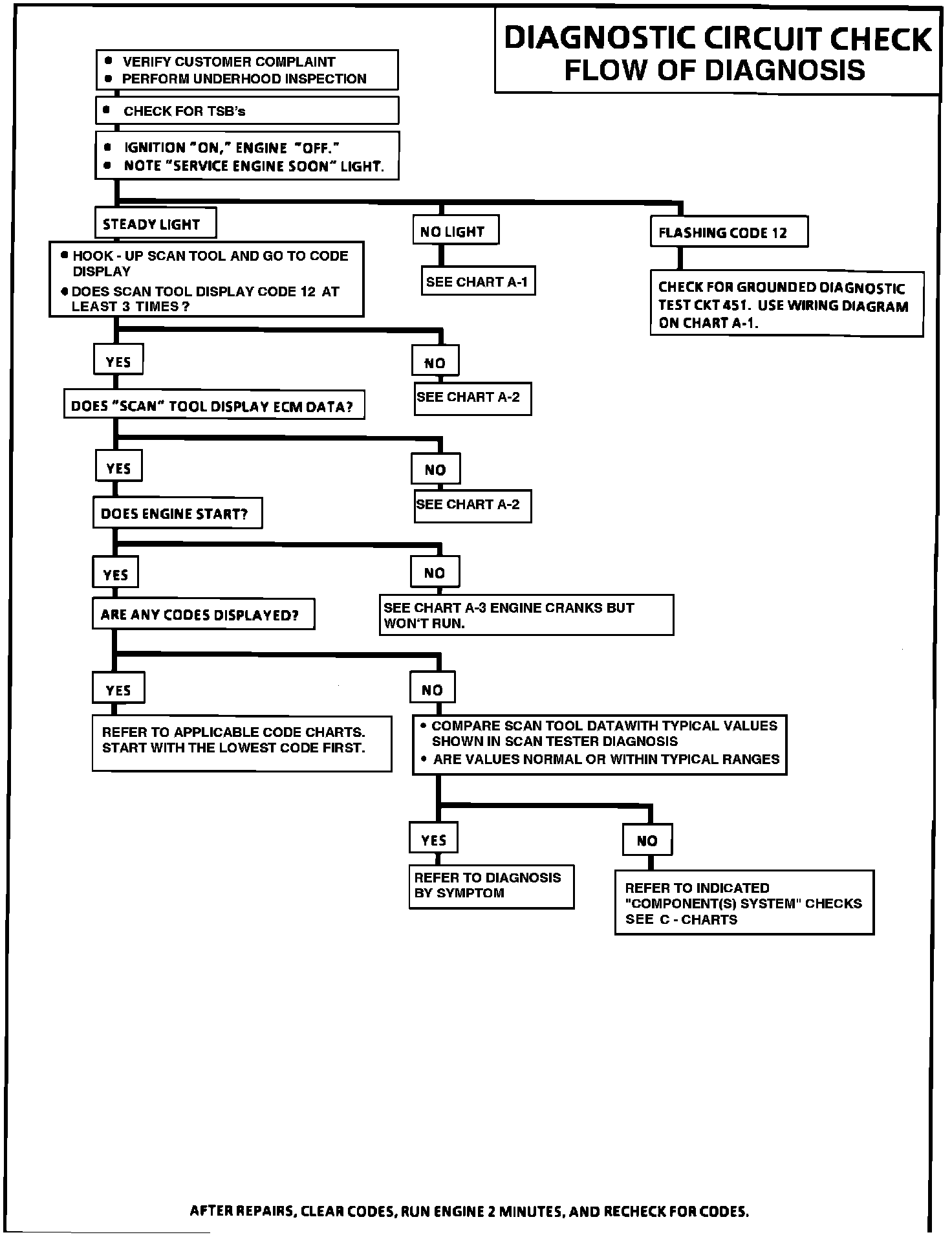

Diagnostic Circuit Check

Diagnostic Circuit Check:

CIRCUIT DESCRIPTION
The Diagnostic Circuit Check is an organized approach to identifying a problem created by a malfunction in the engine control system. It must be the starting point for any driveability complaint diagnosis, because it directs the service technician to the next logical step in diagnosing the complaint. Using the chart correctly will reduce diagnostic time and prevent the unnecessary replacement of good parts.
