On-Vehicle Service Kickdown Switch

ON-VEHICLE SERVICE

KICKDOWN SWITCH

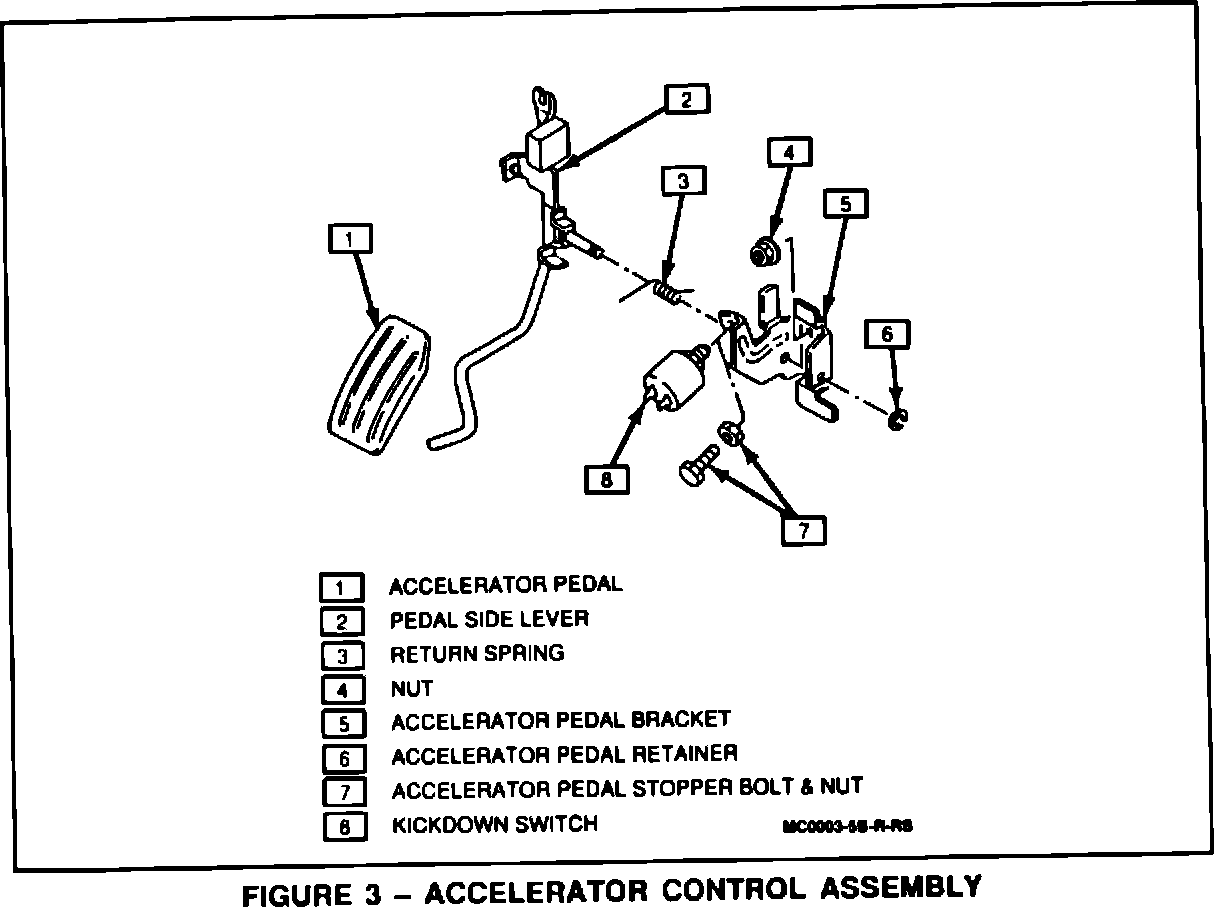

Figure 3

Remove or Disconnect

1. Kickdown switch electrical connectors.

^ Loosen kickdown switch locknuts.

2. Kickdown switch from accelerator pedal bracket by rotating the switch counterclockwise.


Install or Connect

1. Kickdown switch to accelerator pedal bracket by rotating switch clockwise until a click is heard. Rotate the switch an additional one-half turn clockwise after the click is heard.

^ Tighten the kickdown switch locknuts.

2. Kickdown switch electrical connectors.
