Brake Transmission Shift Interlock (BTSI)

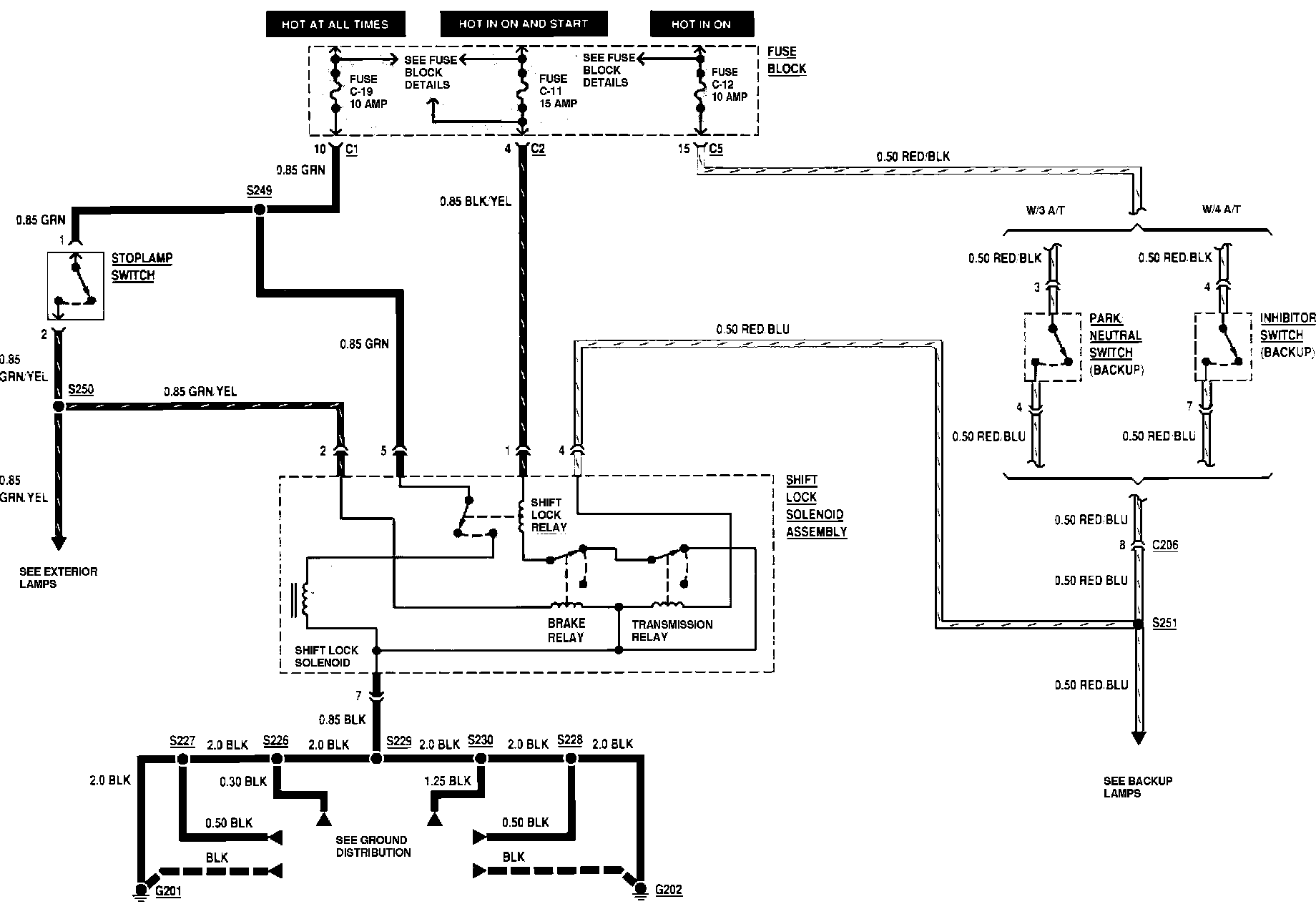

Brake Transmission Shift Interlock (BTSI)
Shift Lock System:
