A/C Signal: Description and Operation

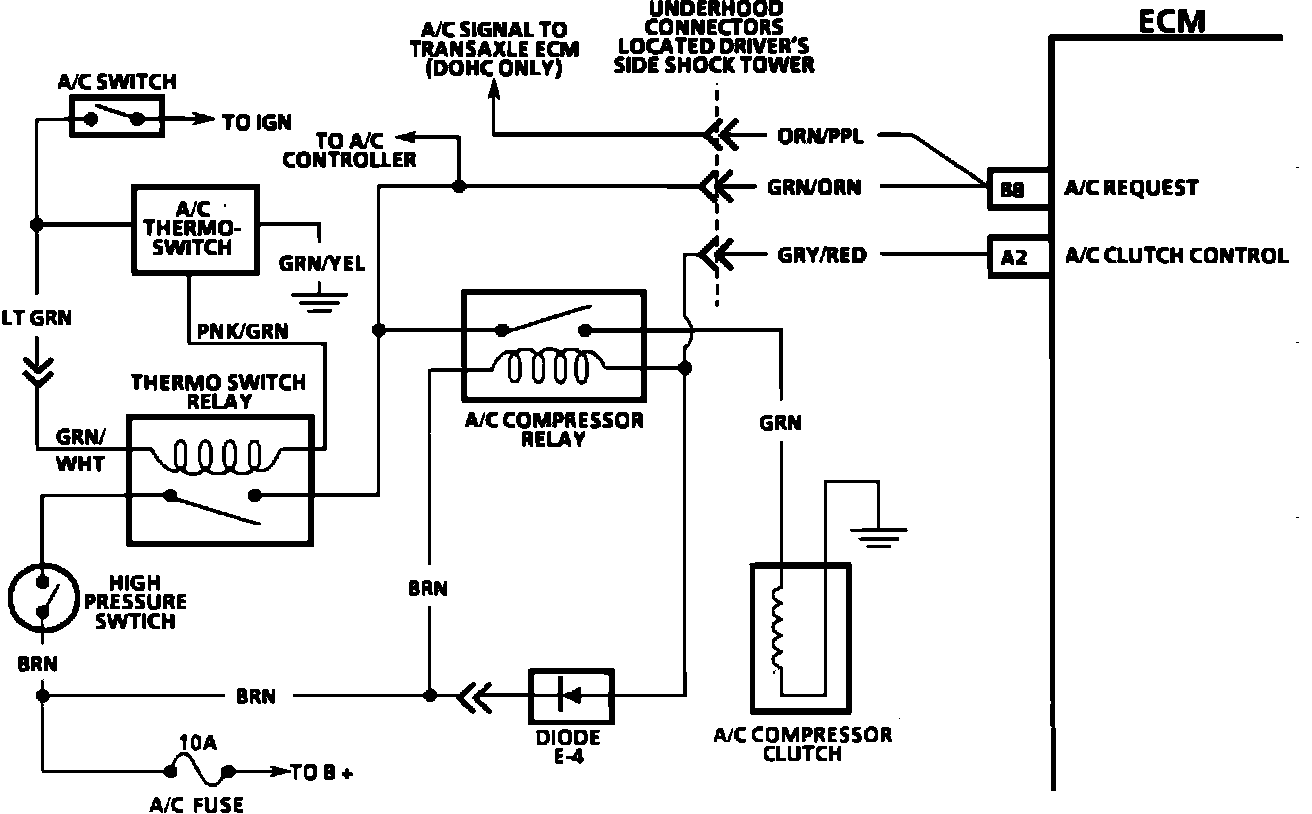

A/C Circuit:
This signal tells the ECM that the A/C selector switch is turned "ON." The ECM uses this to adjust the
idle speed, before turning "ON" the A/C clutch. If this signal is not available to the ECM, the A/C compressor will be inoperative.
