Heater System - Diagnostic Chart Correction

9216chevy03

Number: 91-191-1A

Section: 1A

Date: FEBRUARY 1991

Corporate Bulletin No.: 131102


Subject:
HEATER SYSTEM DIAGNOSIS CHART CORRECTION


Model and Year:
1990-91 GEO TRACKER





Service Update

This bulletin amends the "Heater and Ventilation Diagnosis" charts found in Heater System (Section 1A) of the 1990 and 1991 GEO Tracker Service Manuals (ST377-90 and ST377-91, respectively).

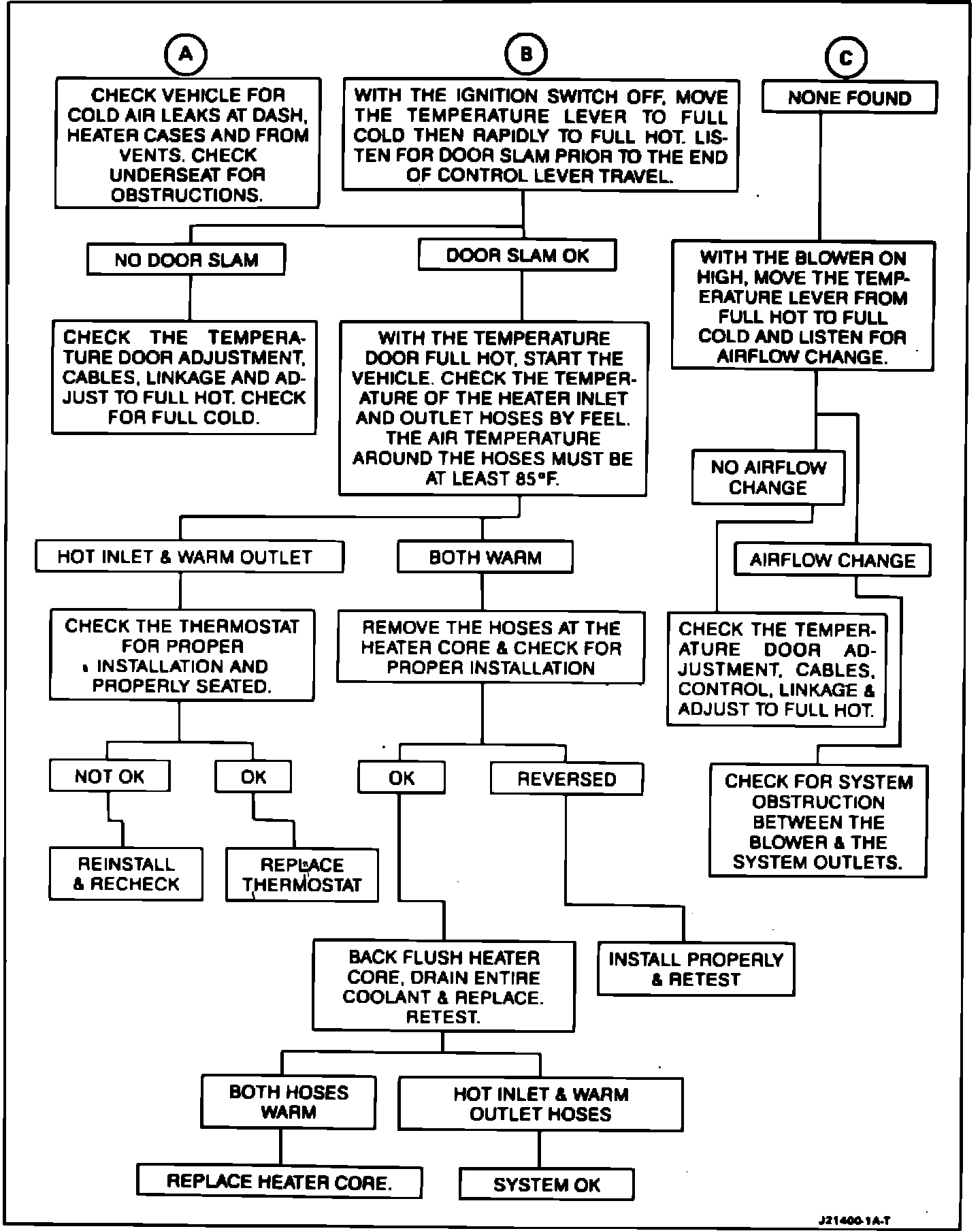

Figure 10 of this bulletin replaces Figure 12, on page 1A-8, of the 1990 GEO Tracker Service Manual (ST377-90). Figure 10 of this bulletin also replaces Figure 10, on page 1A-7 of the 1991 GEO Tracker Service Manual (ST377-91).
