Wiper Motor: Testing and Inspection

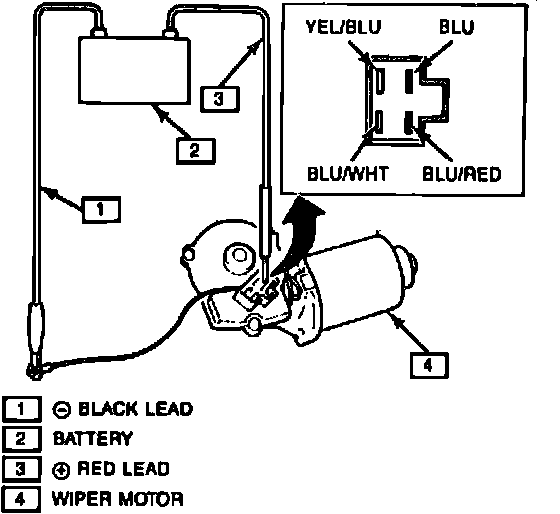

Fig. 6 Front wiper motor Lo & Hi speed test:

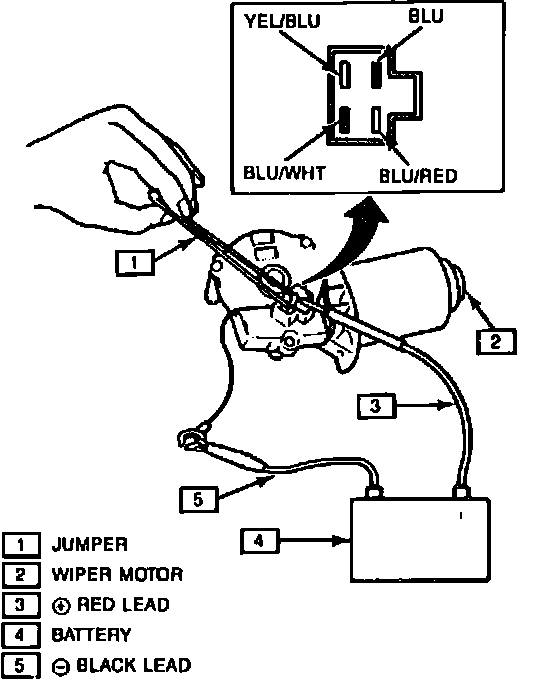

Fig. 7 Front wiper motor auto stop test:

FRONT

Lo & Hi Speed
1. Connect battery positive to wiper motor BLU terminal and battery negative to BLK lead, Fig. 6. Motor should run 45-55 RPM.
2. Connect battery positive to wiper motor BLU/RED terminal and battery negative to BLK lead, Fig. 6. Motor should run 68-78 RPM.

Auto Stop
1. Connect battery positive to wiper motor YEL/BLU terminal and battery negative to BLK lead, Fig. 7.
2. Jumper BLU/WHT terminal to BLU terminal, Fig. 7. Motor should stop at a given position conforming to start position. Repeat this step several times to ensure motor stops in same position.

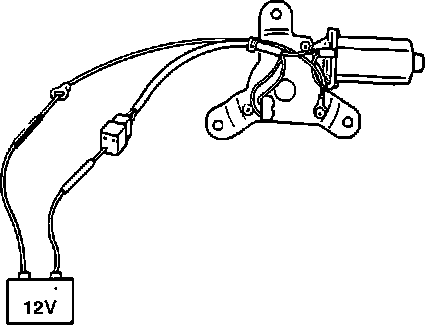

Fig. 8 Rear wiper motor test:

REAR

Motor Test
Connect battery positive to wiper motor ORN terminal and battery negative to BLK lead, Fig. 8. Motor should run at 45-55 RPM.

Auto Stop
Connect battery positive to wiper motor YEL/BLU terminal and battery negative to BLK lead, Fig. 8. Use a jumper wire to short ORN and BLK/GRN terminals to each other to ensure that motor shaft stops at a given position.
