1992
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

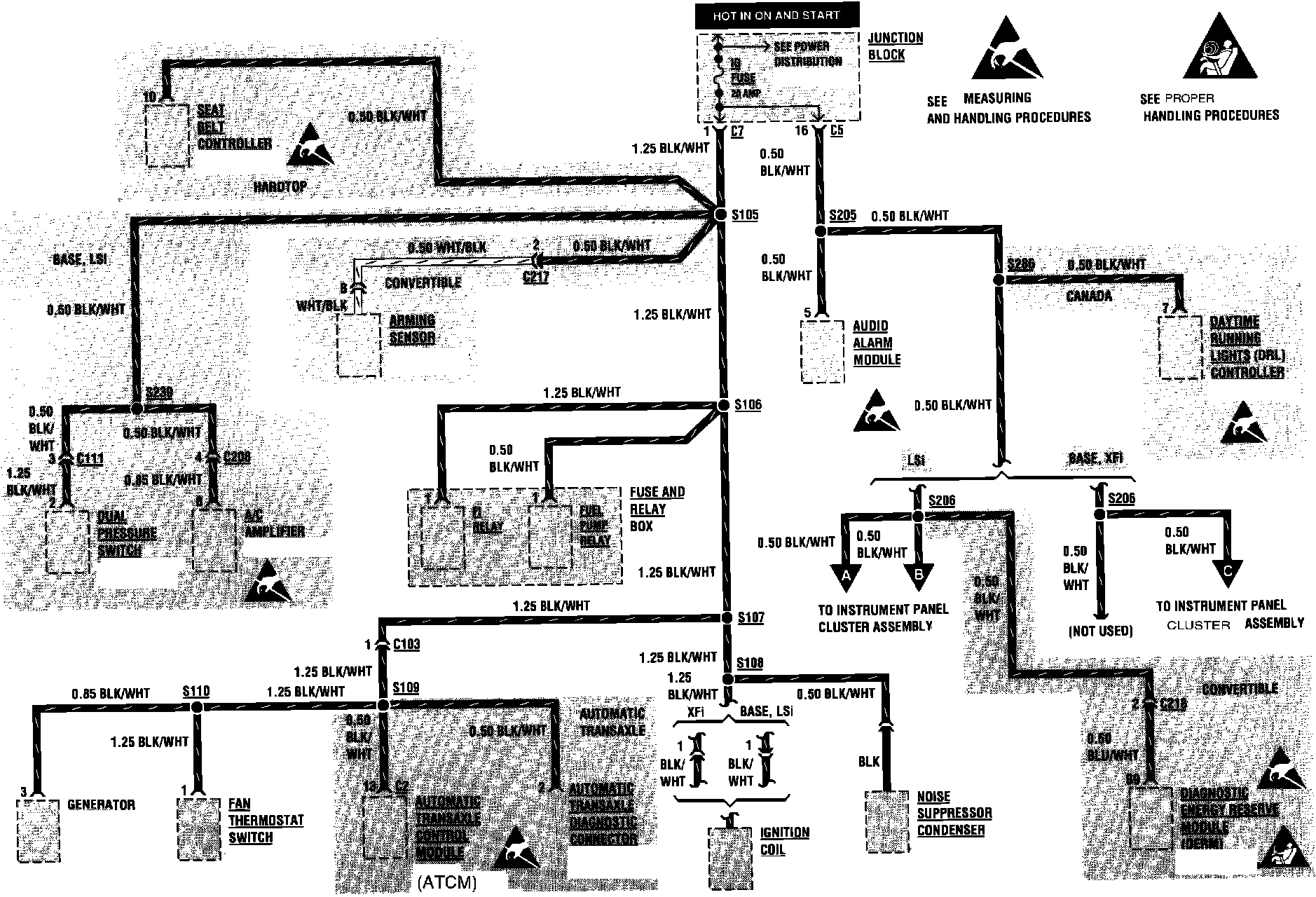

Ignition Fuse
Ignition Fuse

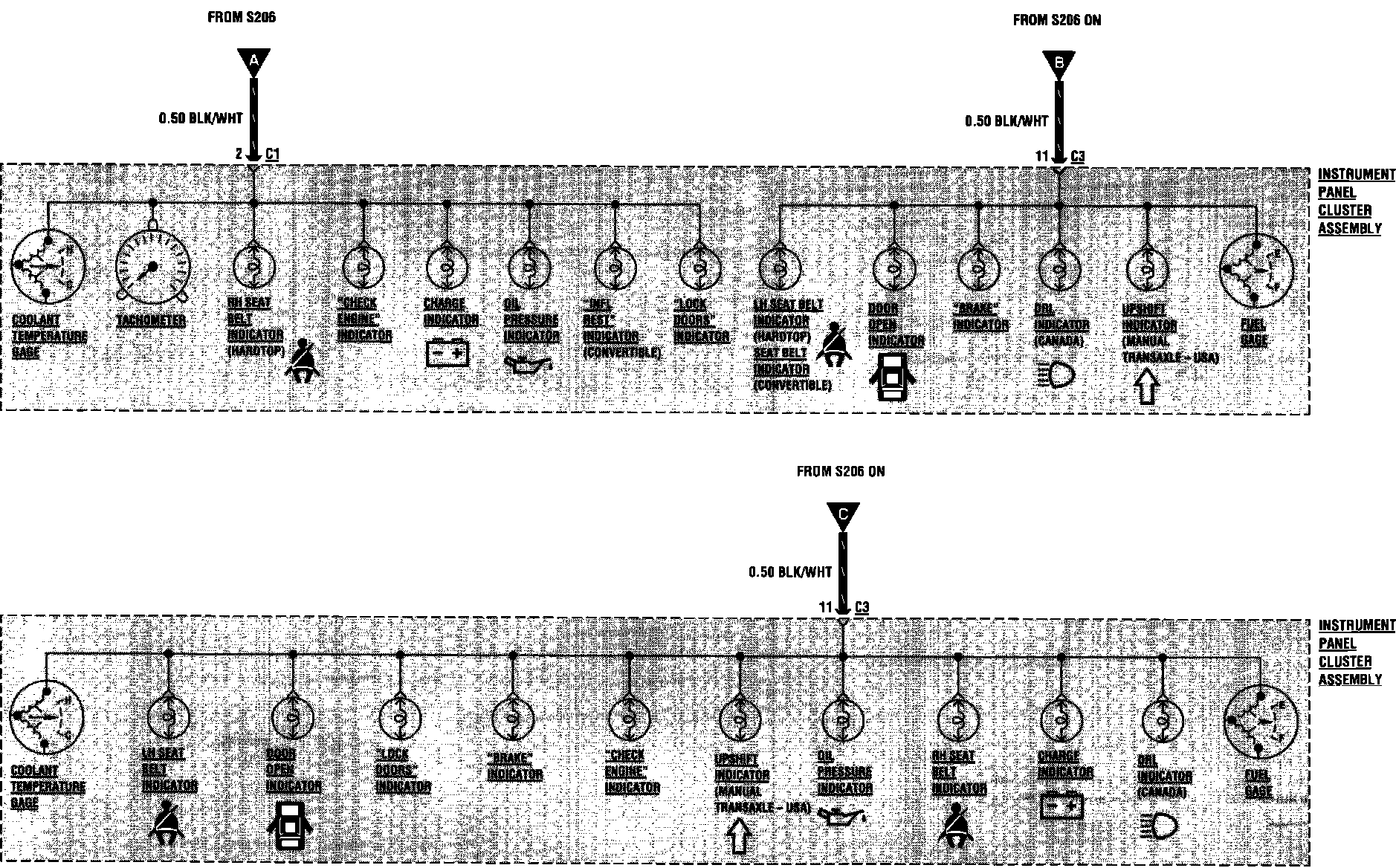

Fuse Block Detail:
Fuse Block Detail:
