Rear Toe Adjustment

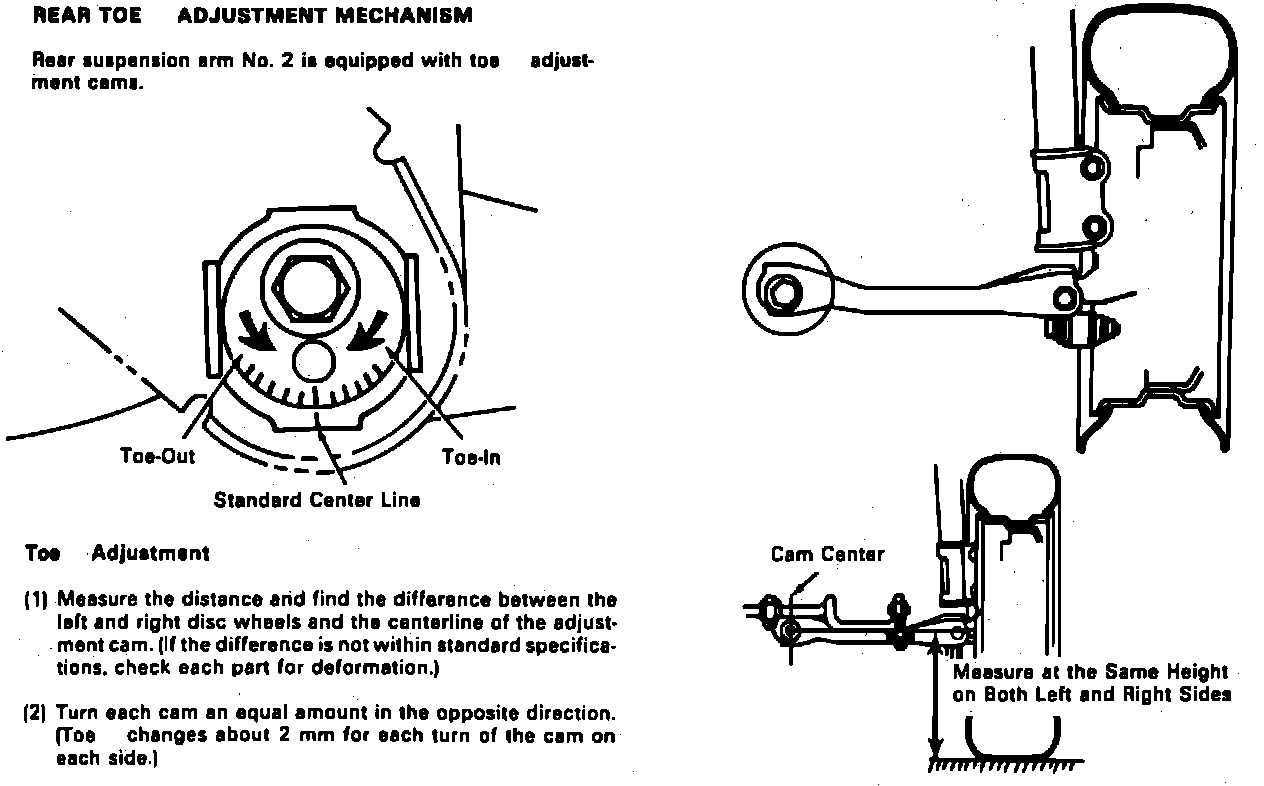

Fig. 2 Rear Toe Adjustment:
Toe-in can be adjusted by rotating the cam located on the rear lower control arm. Loosen bolt and rotate nut to give the correct specification. Measure distance between left and right wheel discs and centerline of adjustment cam,
Fig. 2.
