Air Flow Meter/Sensor: Service and Repair

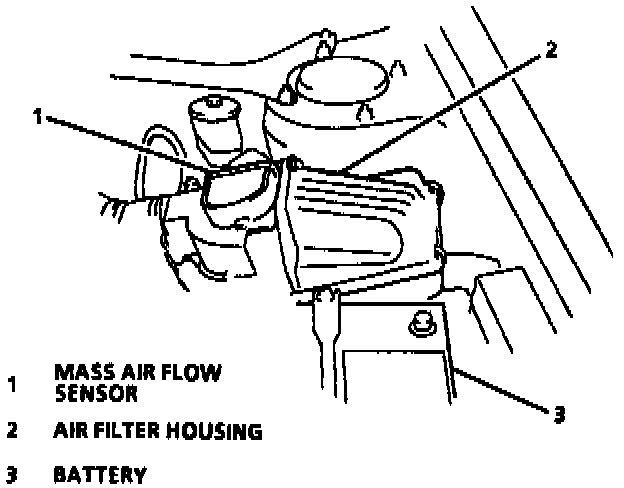

MAF Sensor:
Remove or Disconnect: 1.
Ignition "OFF".
2.
Electrical connector.
3.
Air cleaner cover.
4.
Four fasteners from throttle body.
5.
Mass airflow sensor.
Install or Connect: 1.
Mass airflow sensor.
2.
Four fasteners to throttle body.
3.
Electrical connector.
4.
Air cleaner cover.
