Storm L4-1800cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Fuse Block
Fuse Block

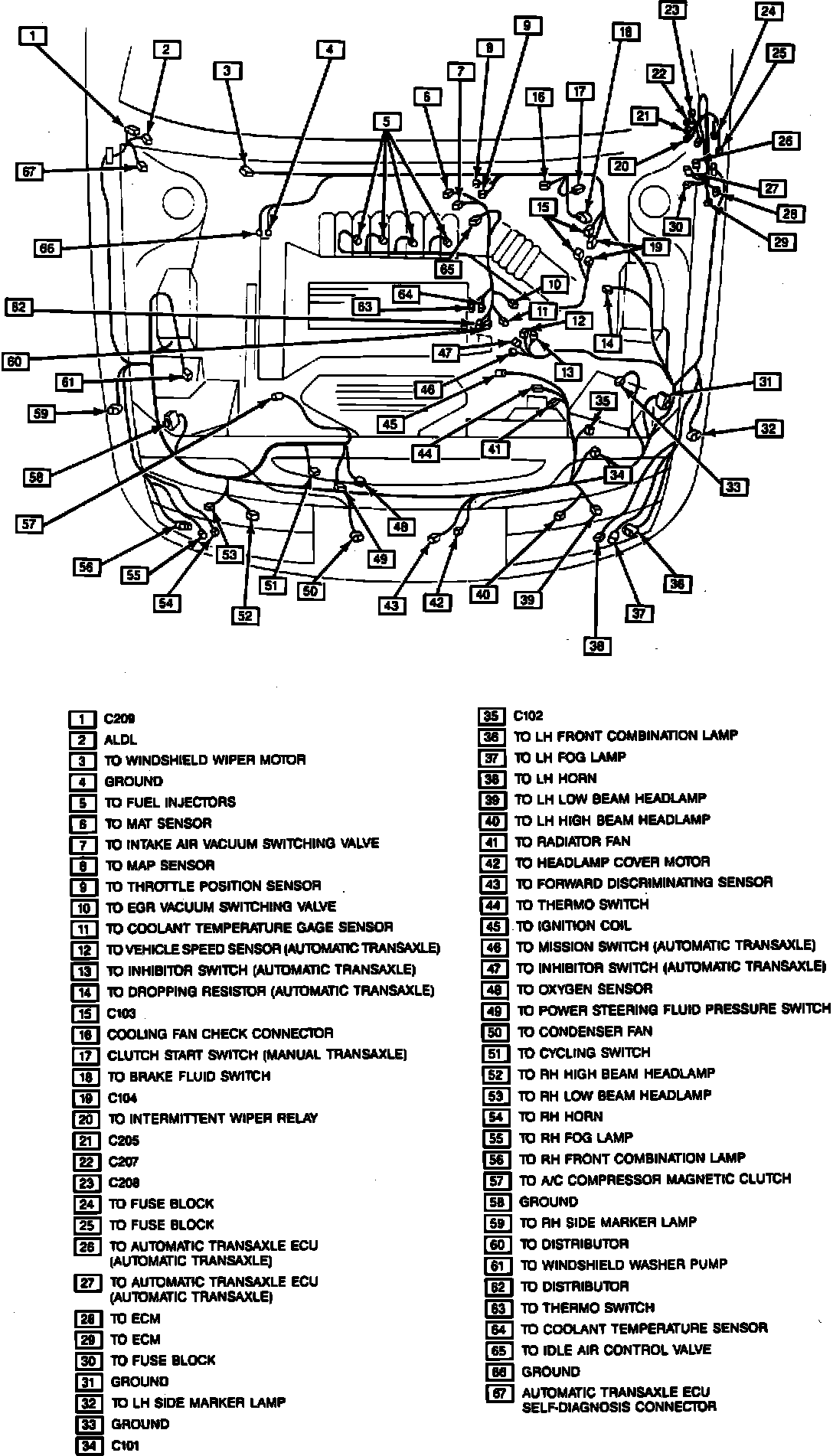

Engine Compartment Components:
Behind LH Side Of I/P, Attached To Junction Block
Applicable to: 1.6L DOHC & 1.8L Engines
