1992
>>
Storm L4-1800cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>

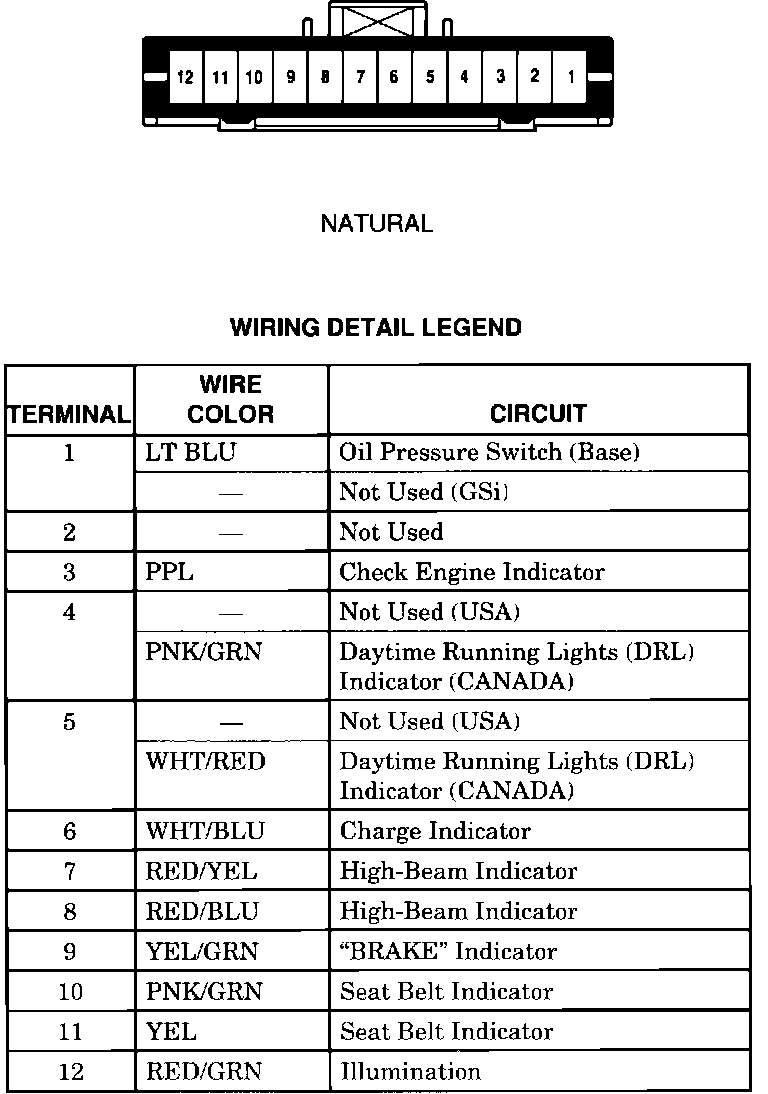

Instrument Cluster Connector
>>
C1 (12 Cavities)
C1 (12 Cavities)
Instrument Panel Cluster:
