Home >> Geo >> 1992 >> Storm L4-1800cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power, Ground and "Check Engine" Indicator

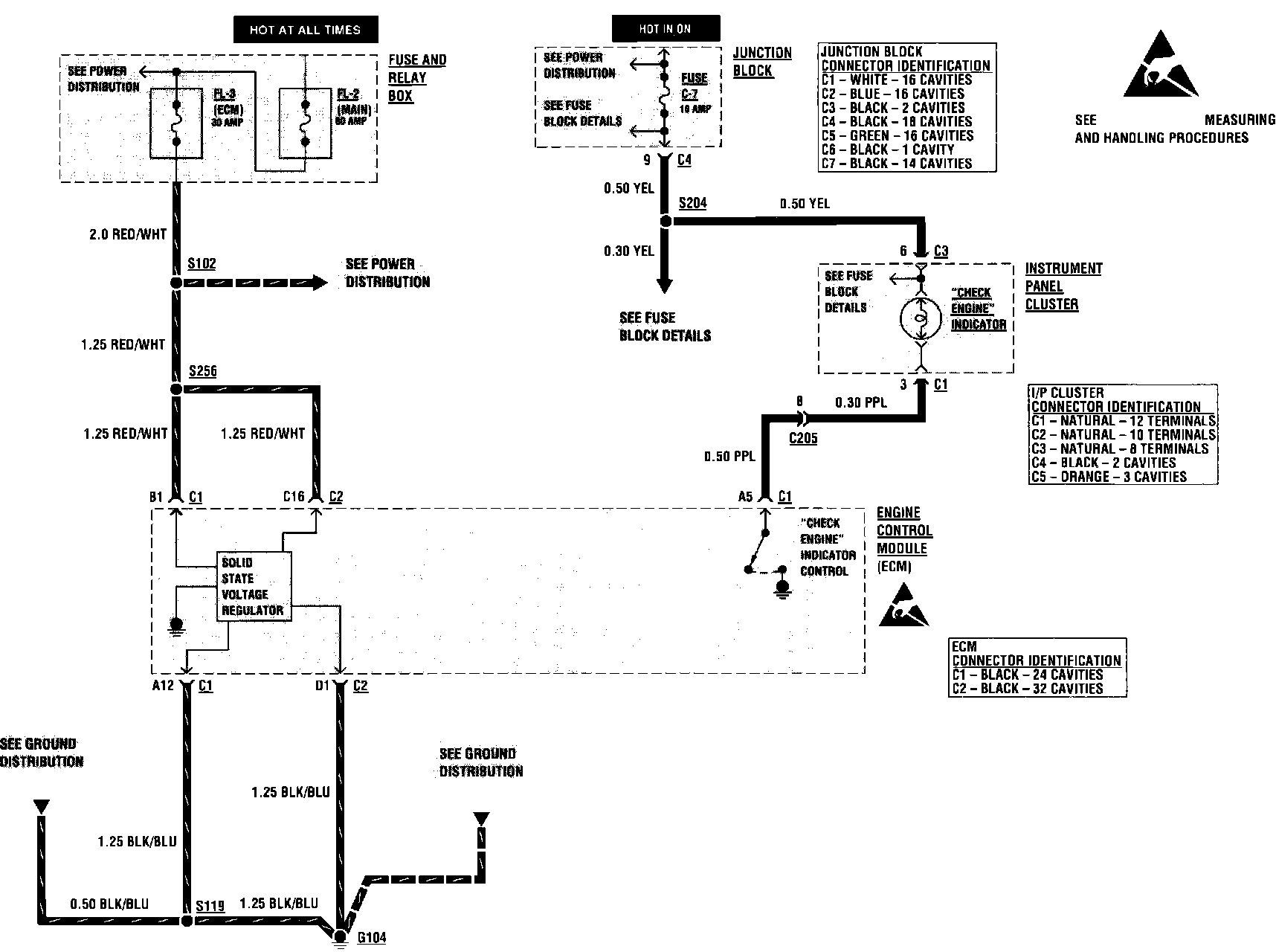

Power, Ground and "Check Engine" Indicator

Engine Controls:
