Home >> Geo >> 1992 >> Storm L4-1800cc 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Idle Speed Controls & Ignition

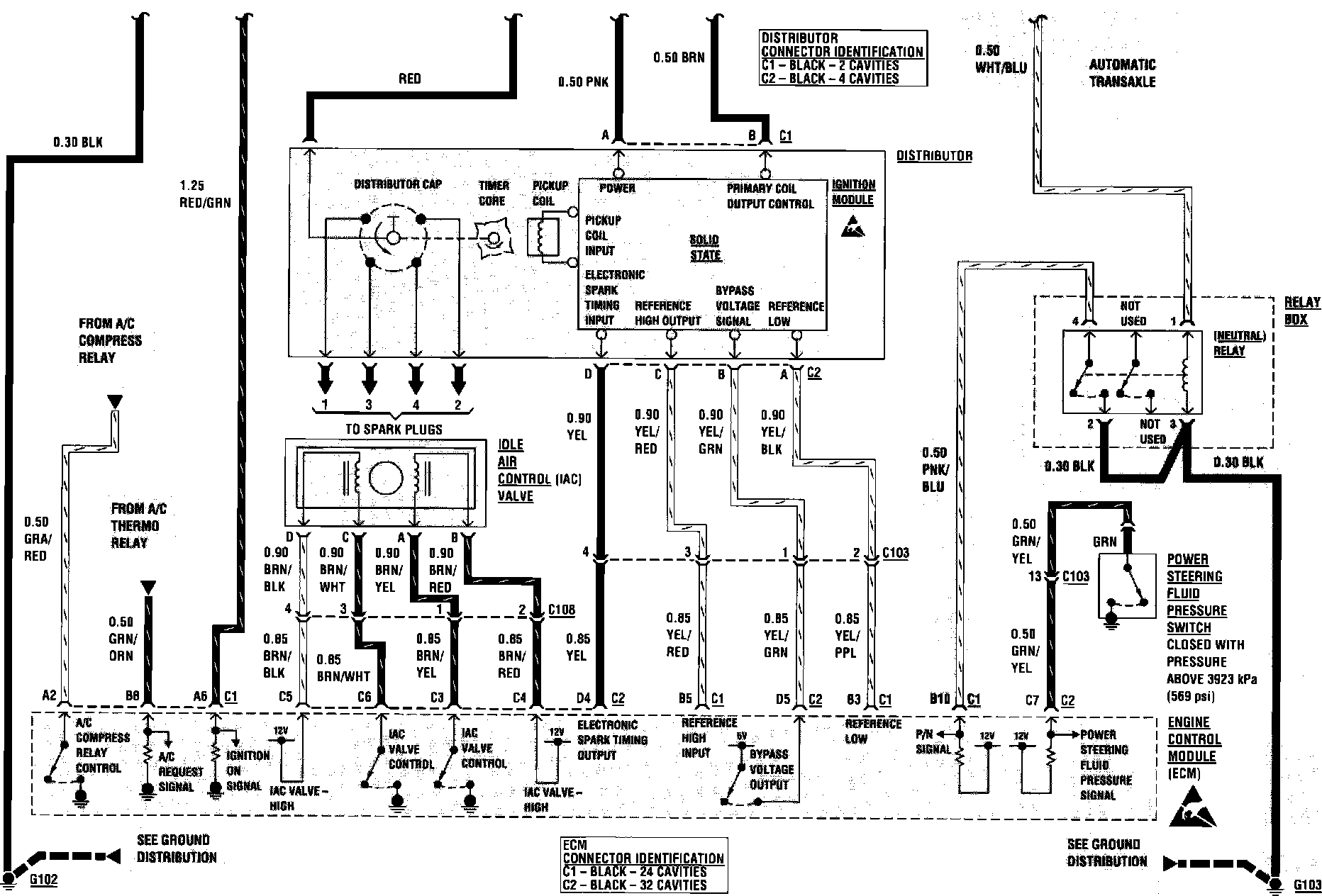

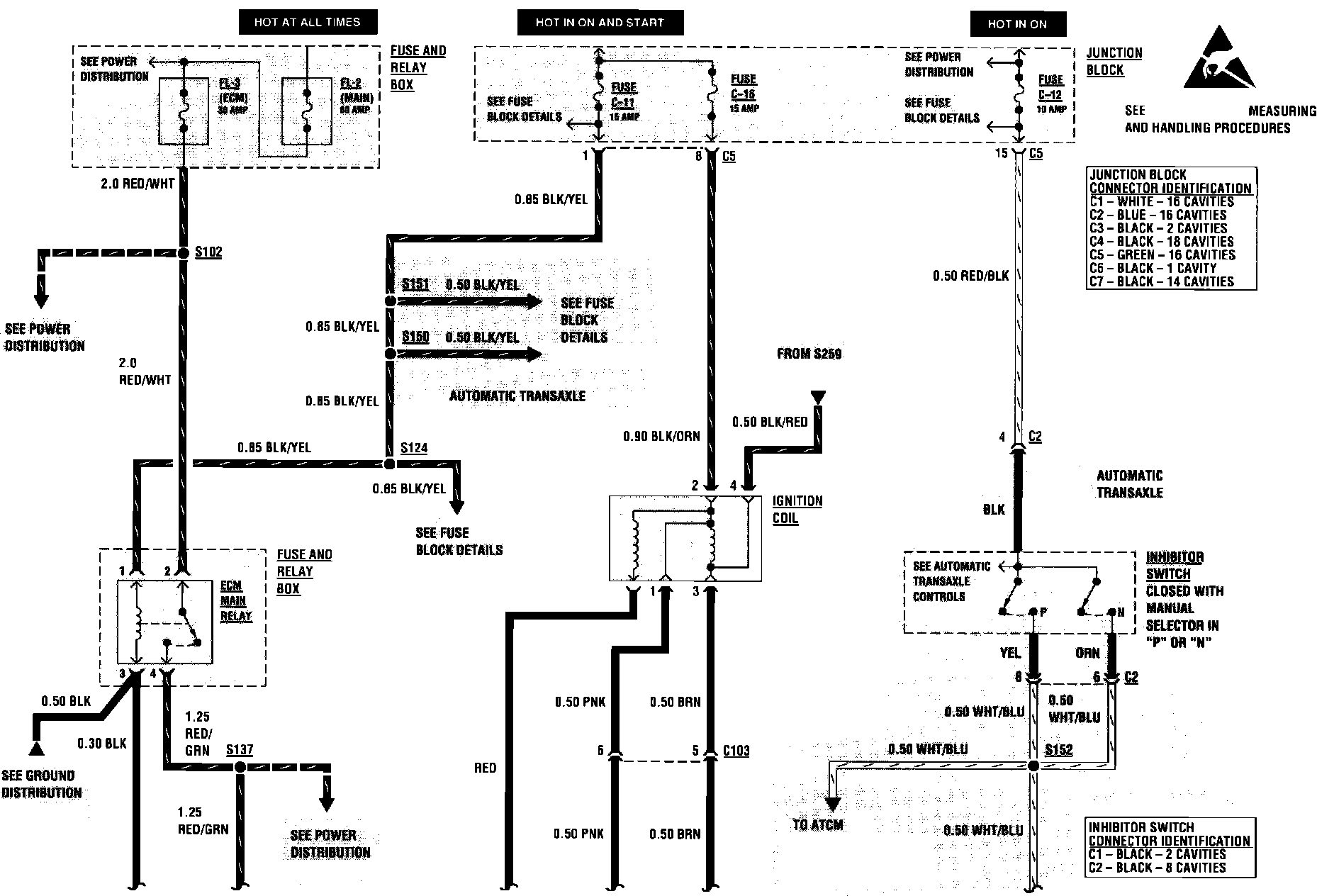

Idle Speed Controls & Ignition

Engine Controls:



Engine Controls:
