Chart B Flash Code Diagnosis
Chart B Flash Code Diagnosis

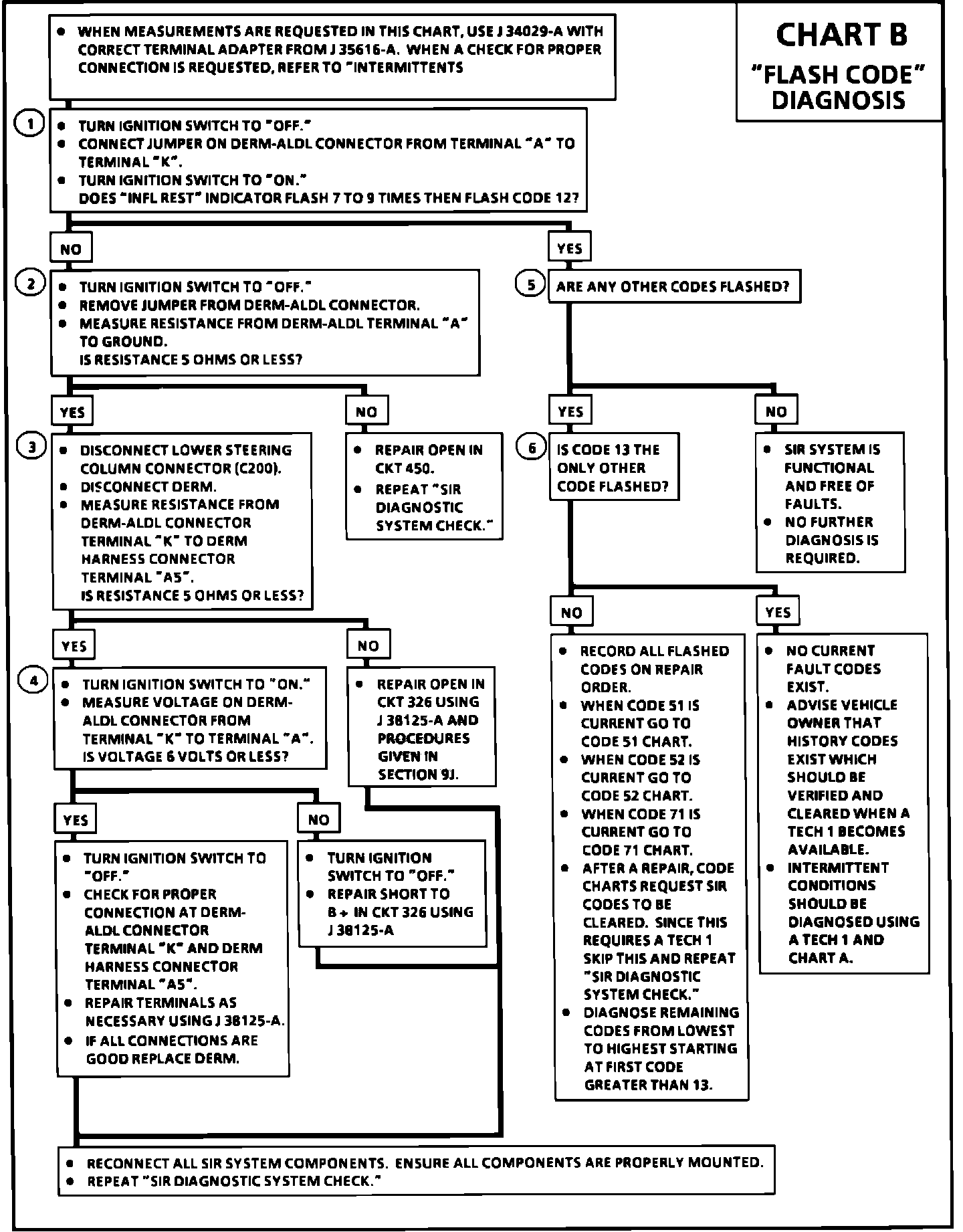

Fig. 515 Chart B, Flash Code Diagnosis (Part 1 of 2):
Fig. 515 Chart B, Flash Code Diagnosis (Part 2 of 2):
