Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1992
>>
Storm L4-1800cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Connector Views
Connector Views

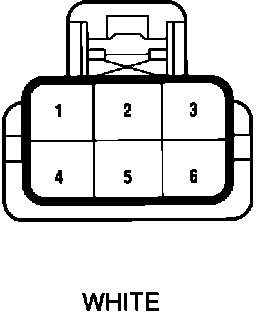

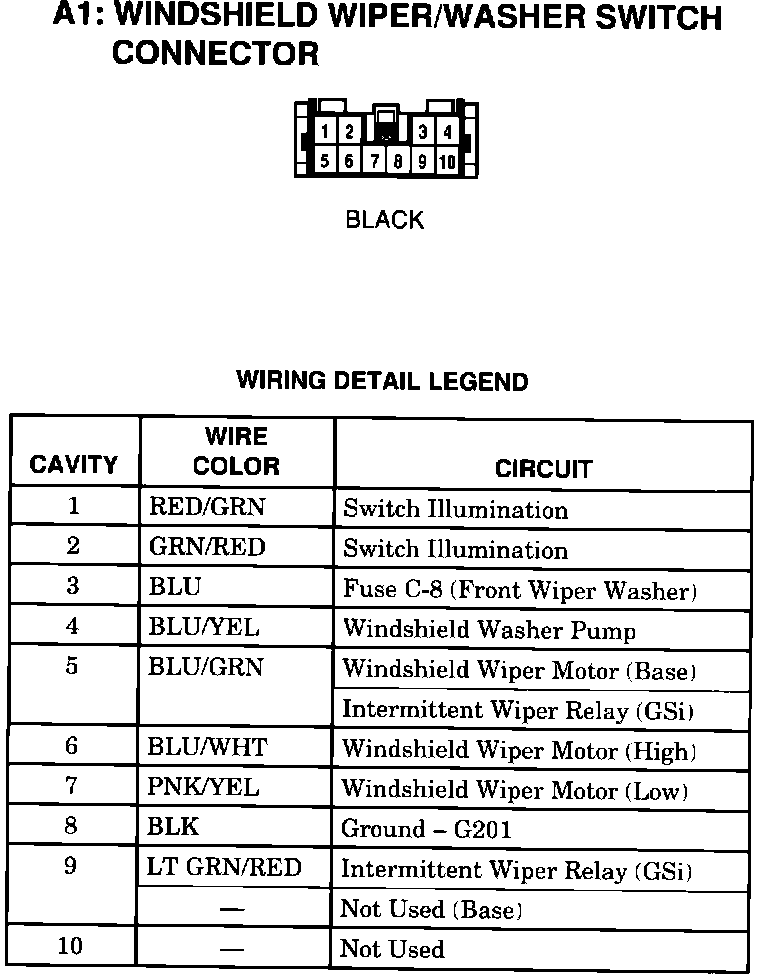

Windshield Wiper/Washer Switch:
Connector Faces:
