Home >> Geo >> 1993 >> Storm L4-1800cc 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Automatic Transaxle Downshift System >> GSI Models

GSI Models

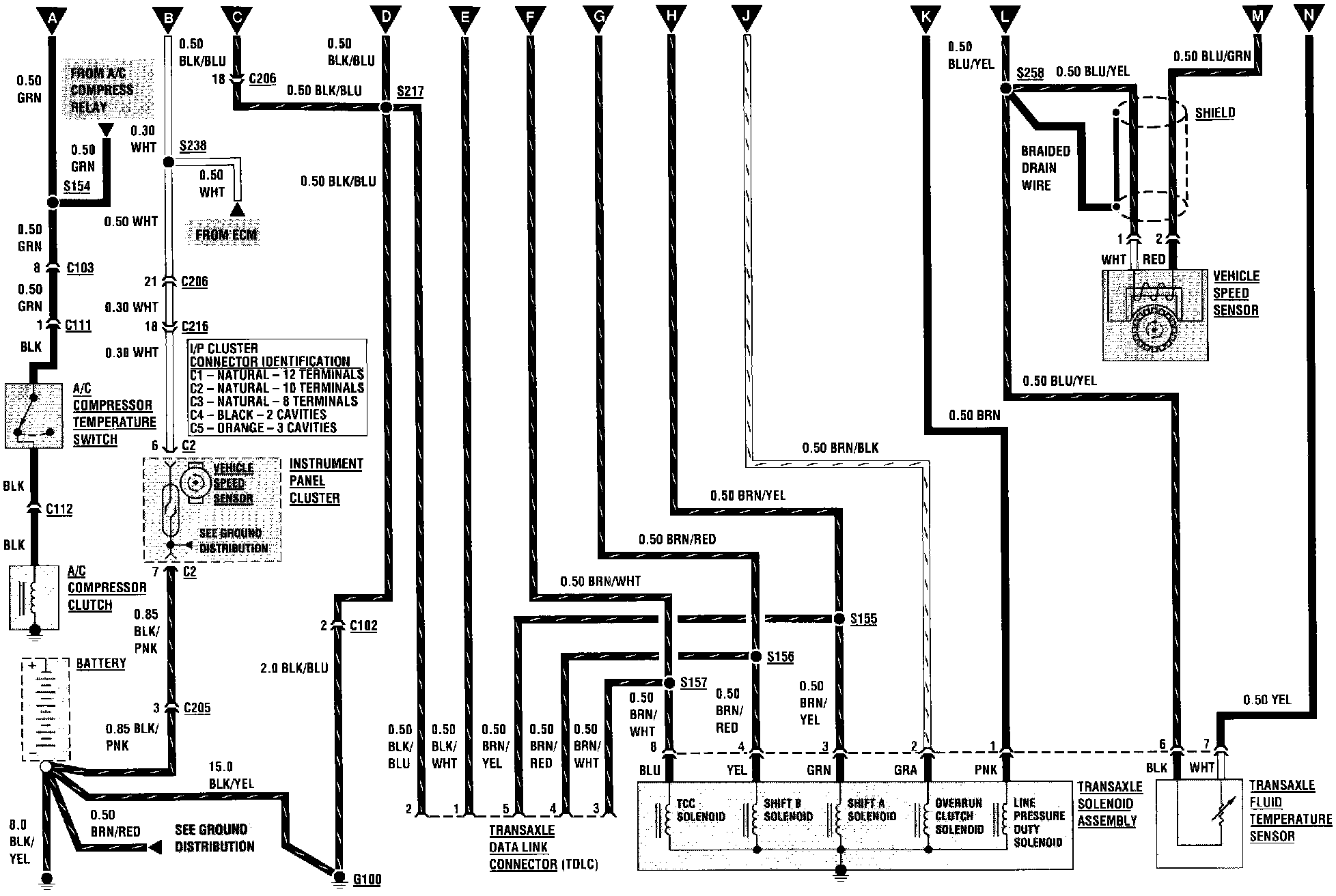

Auto Trans Controls:

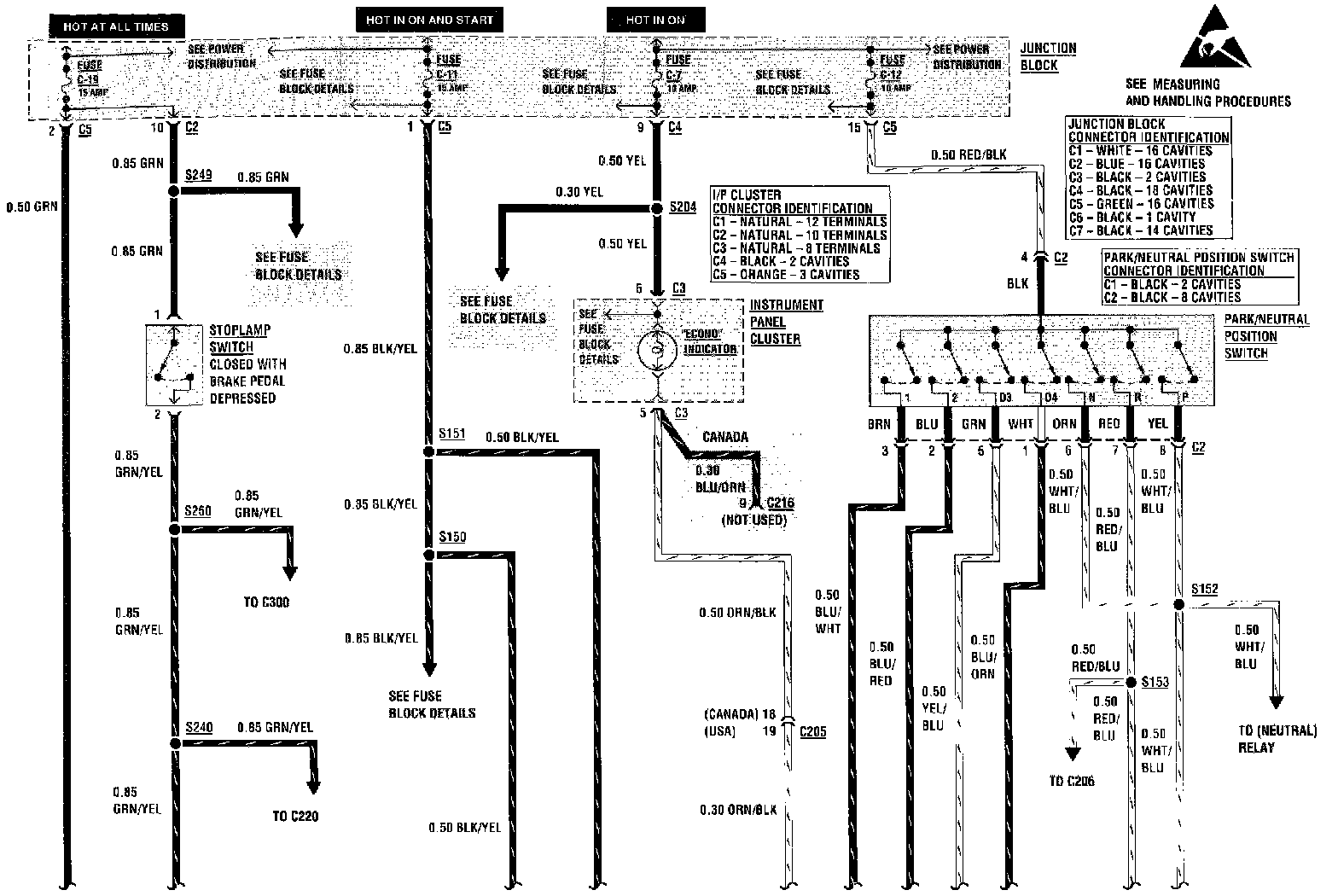

Auto Trans Controls:

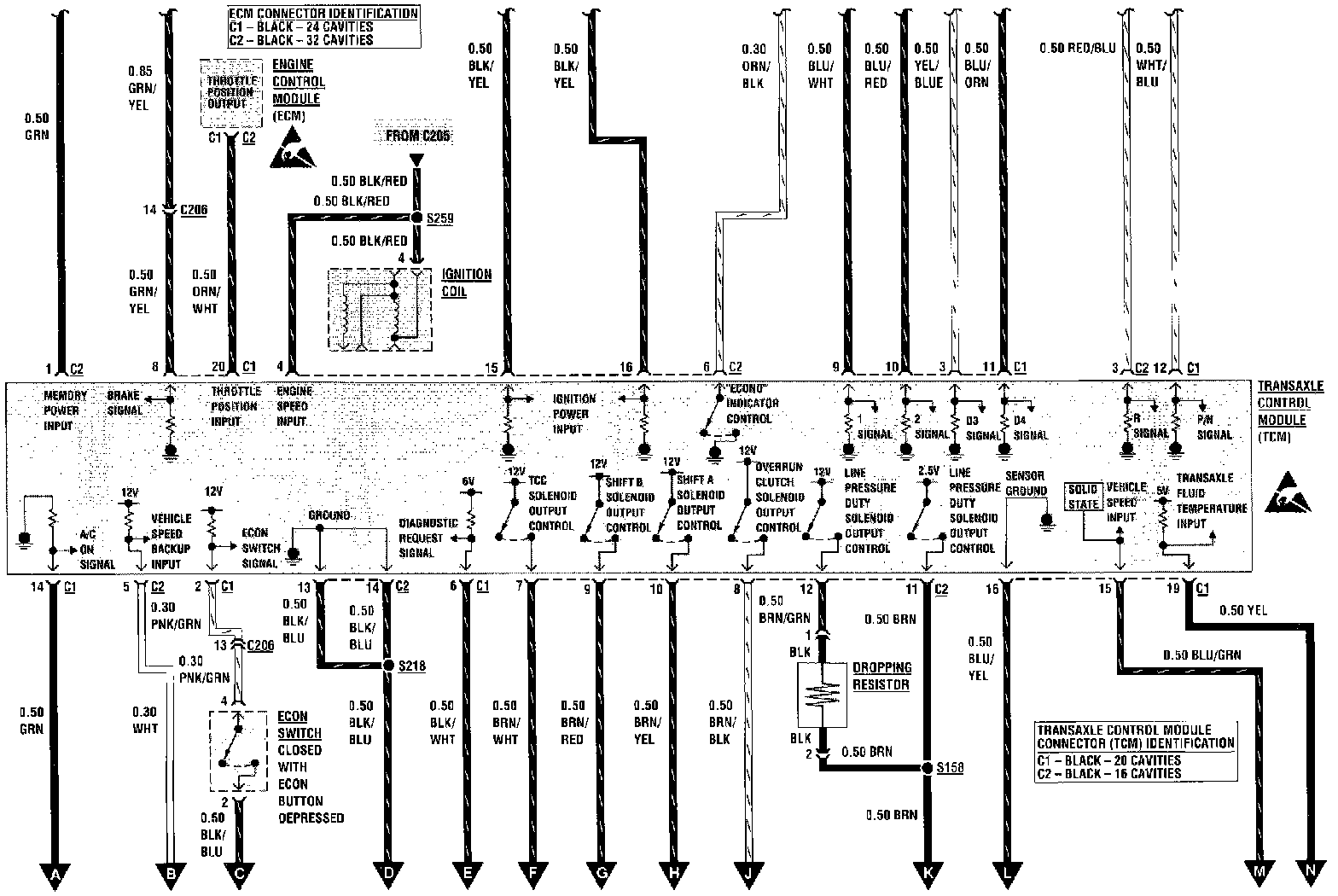

Auto Trans Controls:
