Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Standard Emissions
>>
Connector C1
Connector C1

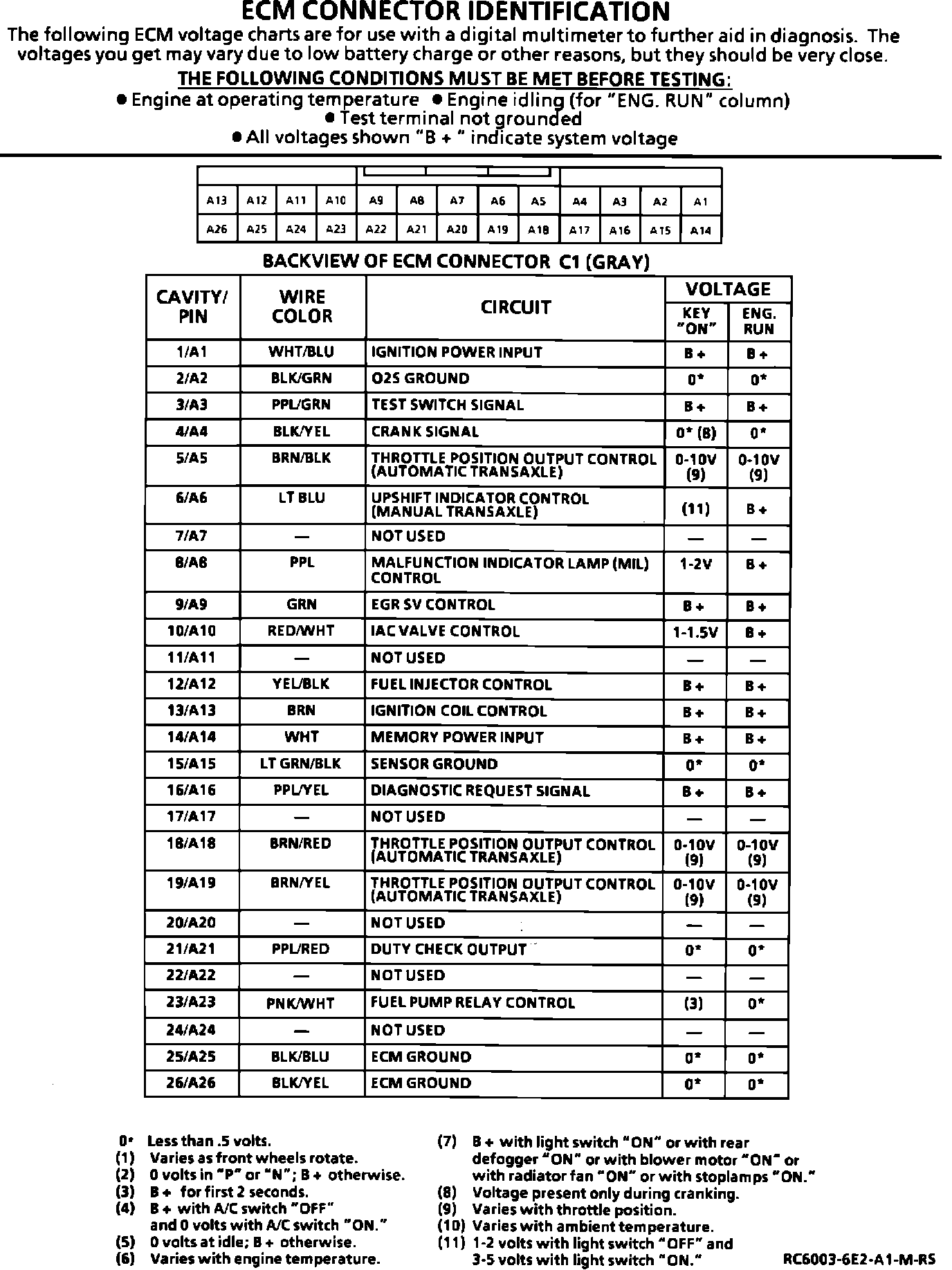

ECM Connector With Standard Emissions:
