With Upgraded Emissions

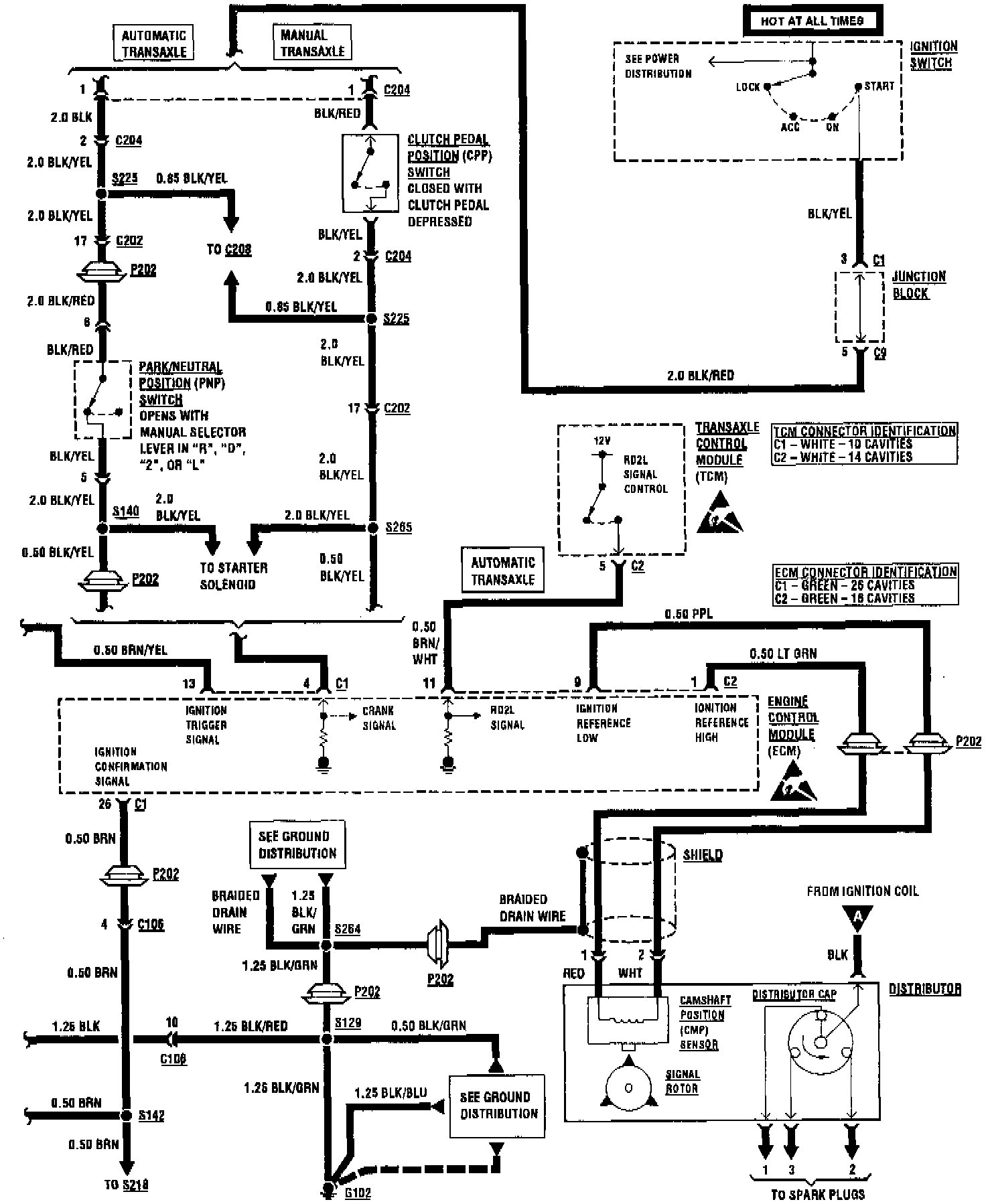

Engine Controls: Ignition - Part 1 Of 2:

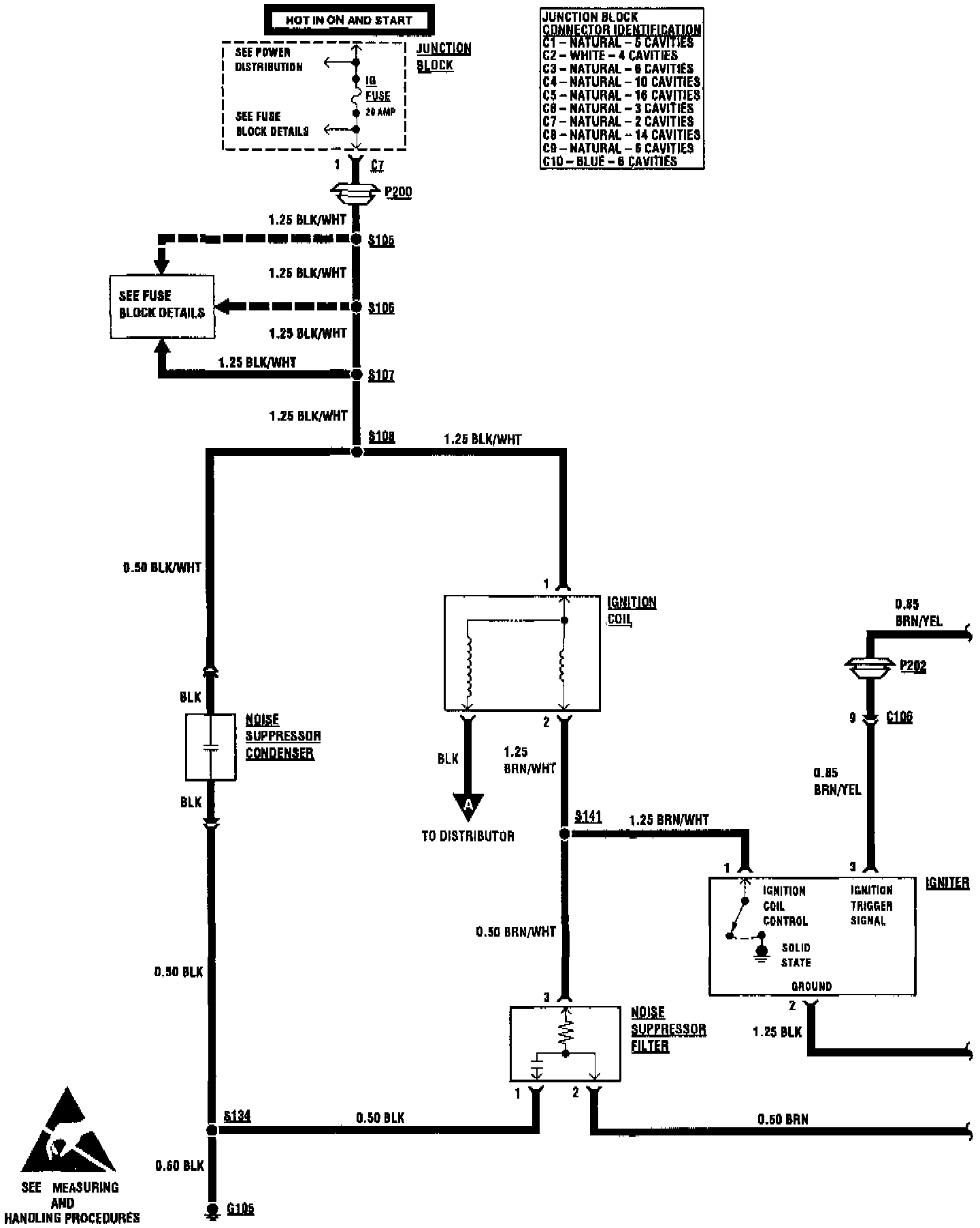

Engine Controls: Ignition - Part 2 Of 2:
