1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems

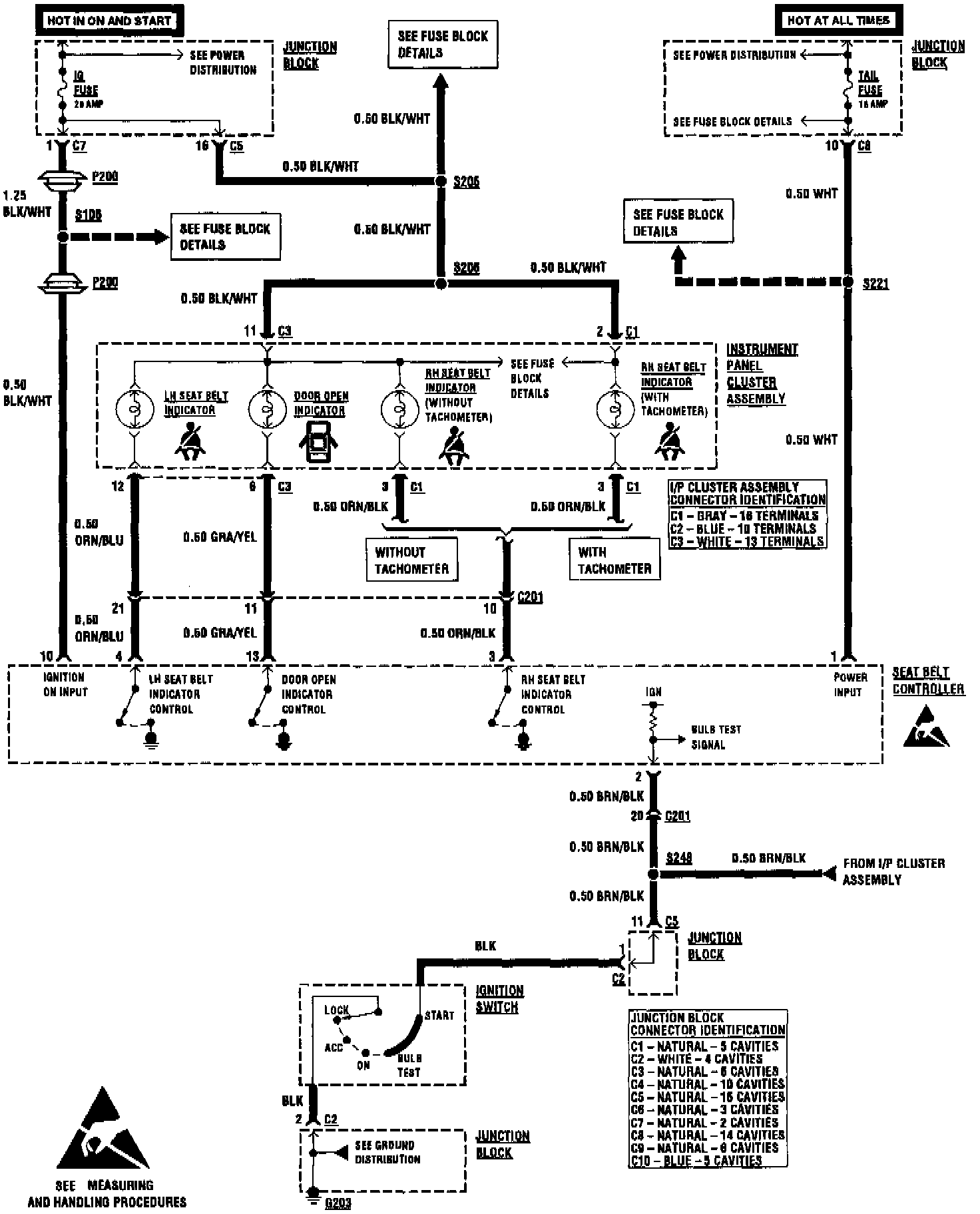

Automatic Seat Belts Circuit - Part 1 Of 3:

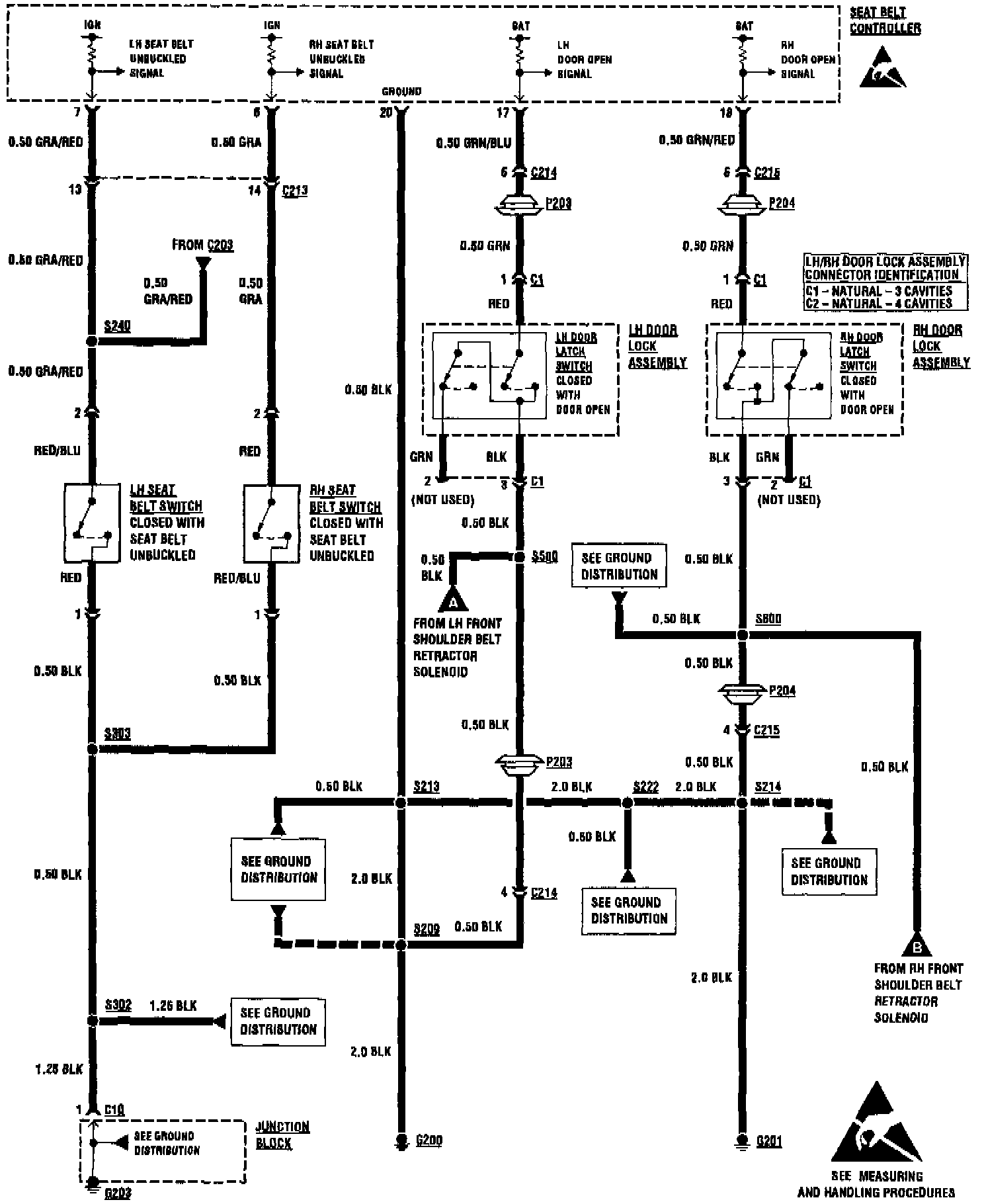

Automatic Seat Belts Circuit - Part 2 Of 3:

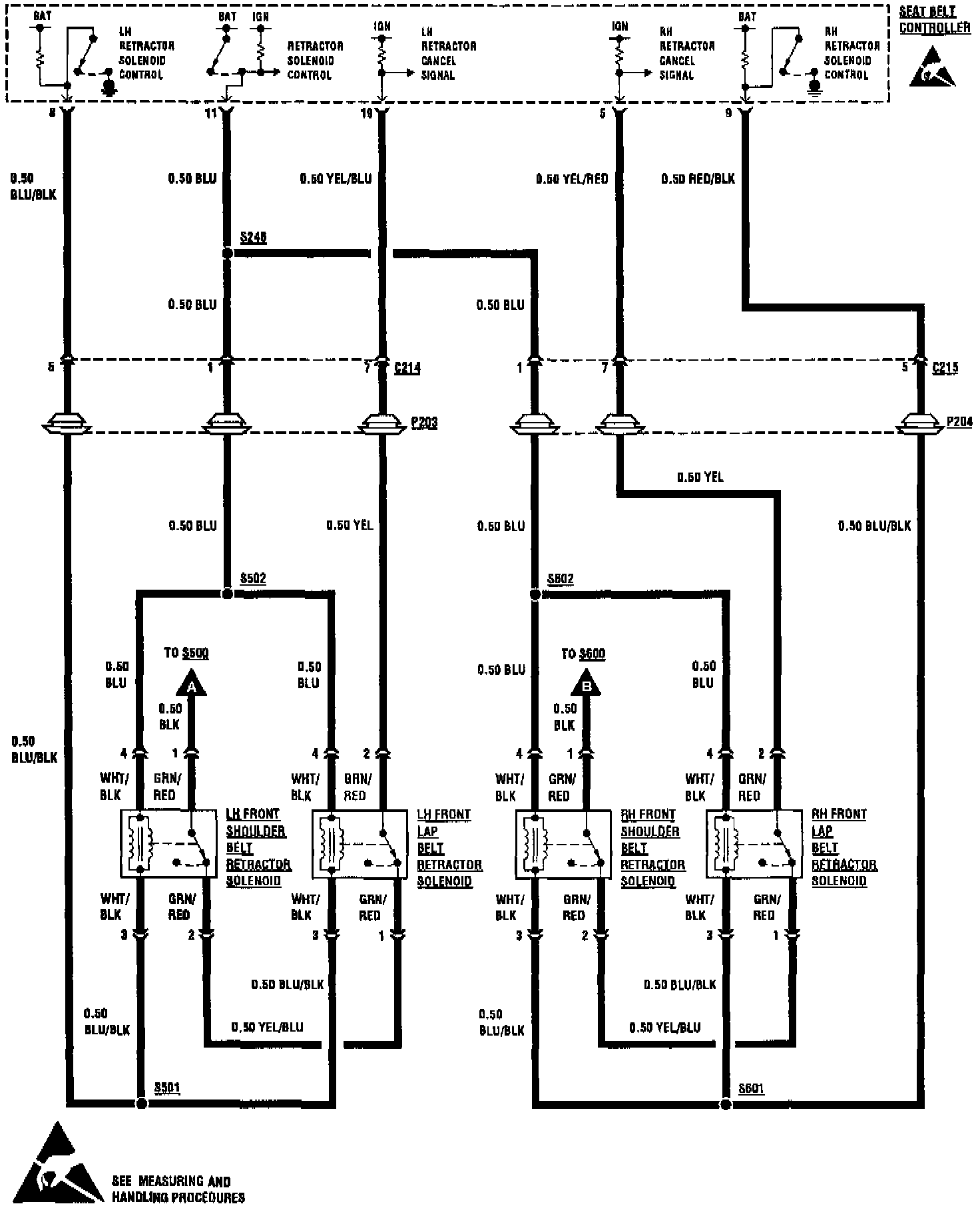

Automatic Seat Belts Circuit - Part 3 Of 3:
