1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors By Component
>>
Transaxle Control Module Connector C1 and C2
>>
Standard Emissions
Standard Emissions

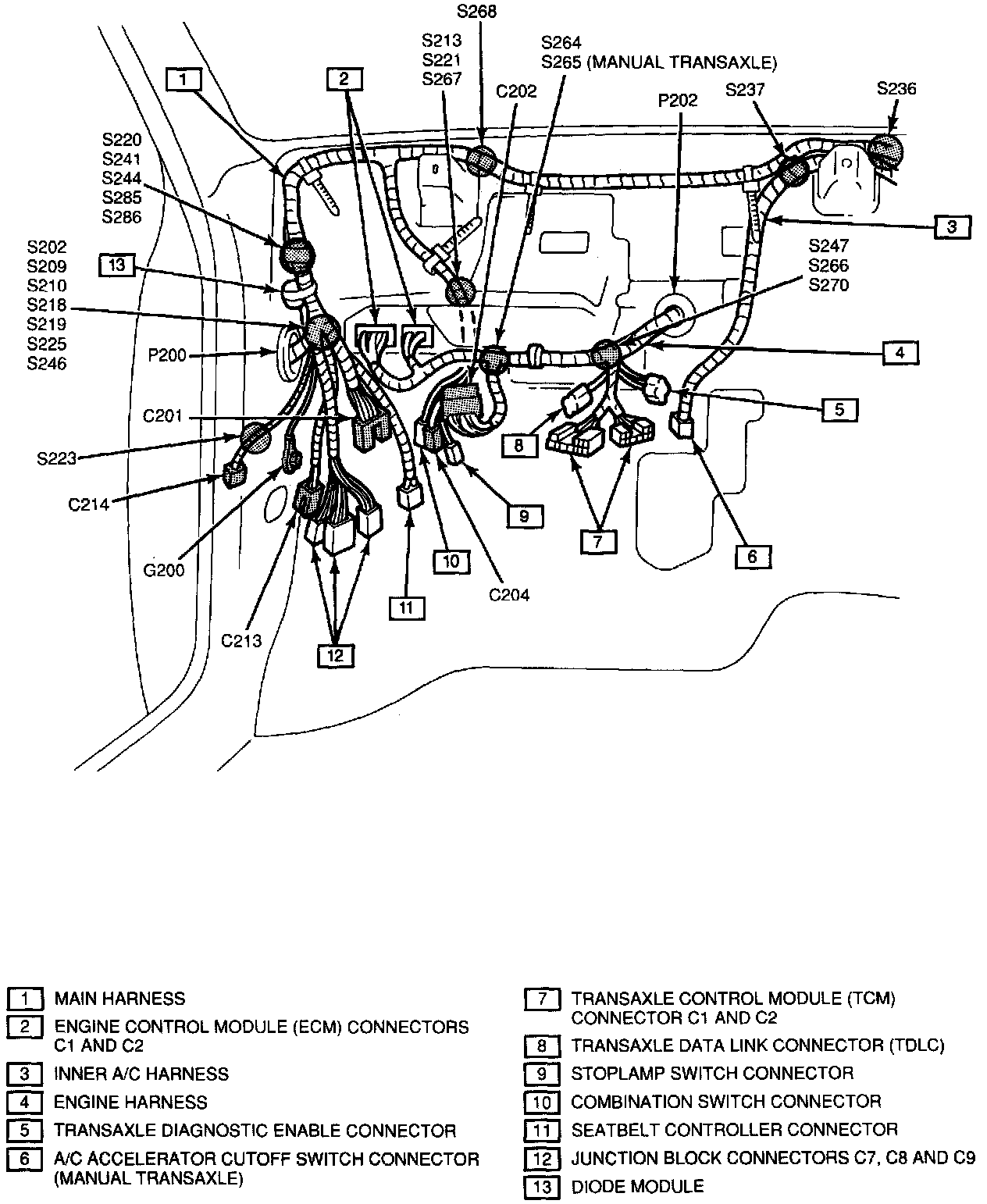

LH Cowl Wiring:
