Vehicle Zoning - Connector Identification

Vehicle Zoning Callout Chart:

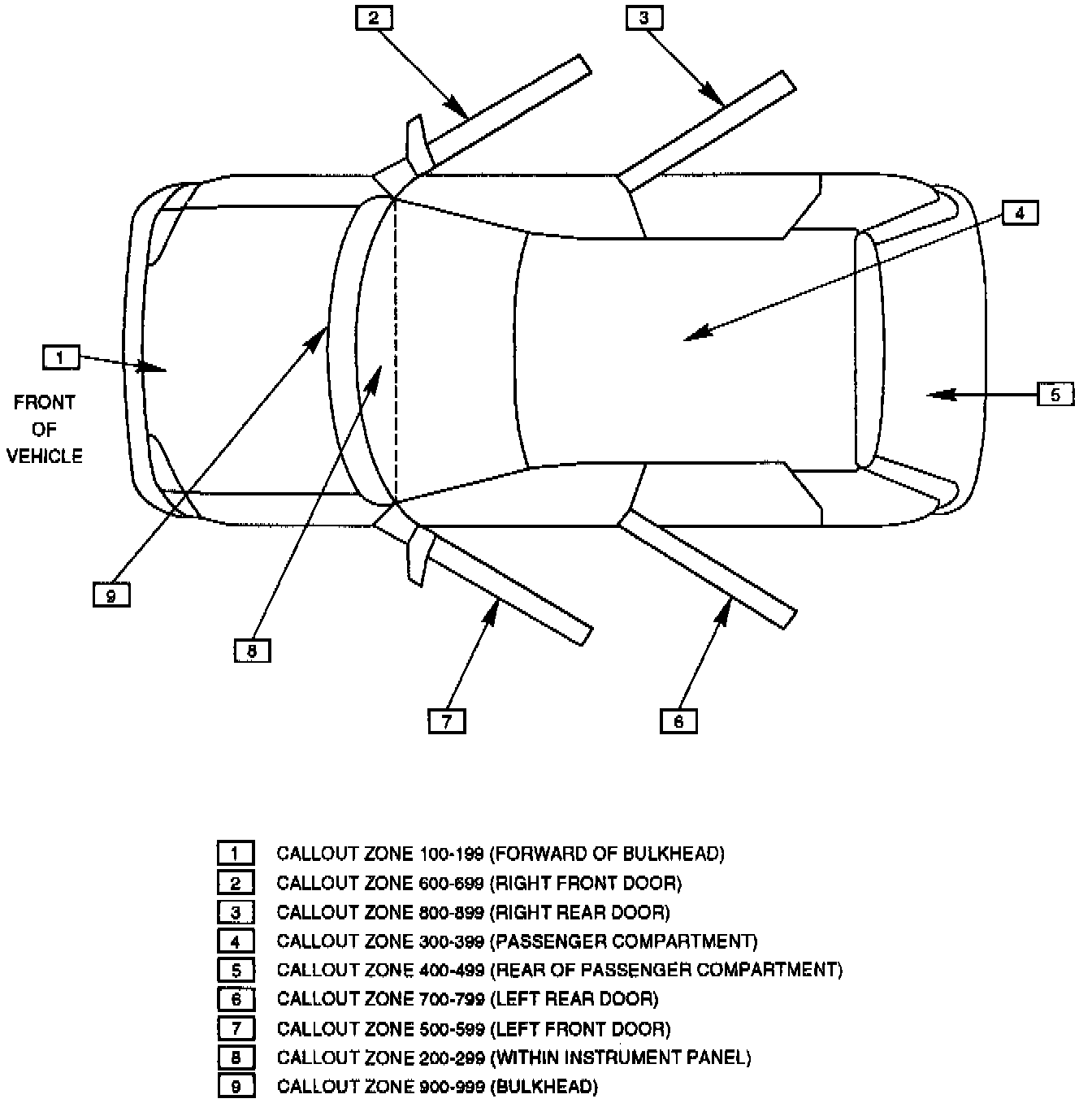

All connectors, grounds, splices and grommets are labeled with numbers which correspond to specific areas of the vehicle. These numbers will help you locate a connector, ground, splice or grommet in the vehicle. For example, connector C6O5 will be located somewhere in the right front door. For further information regarding these locations, refer to the accompanying image.
