SAE J1930 Component Acronyms
ABBREVIATIONSALDL Assembly Line Data Link
CTS Coolant Temperature Sensor
ECT Engine Coolant Temperature (Sensor) (was CTS)
ECM Engine Control Module
EST Electronic Spark Timing
HEI High Energy Ignition
IPC Instrument Panel Cluster
IAC Idle Air Control (Motor)
MAP Manifold Air Pressure
IAT Intake Air Temperature
PCM Powertrain Control Module
SIR Supplemental Inflatable Restraint
TPS Throttle Position Sensor
TCC Torque Converter Clutch
VSS Vehicle Speed Sensor
CONVERSION CHART FOR SAE J-1930 ABBREVIATIONS

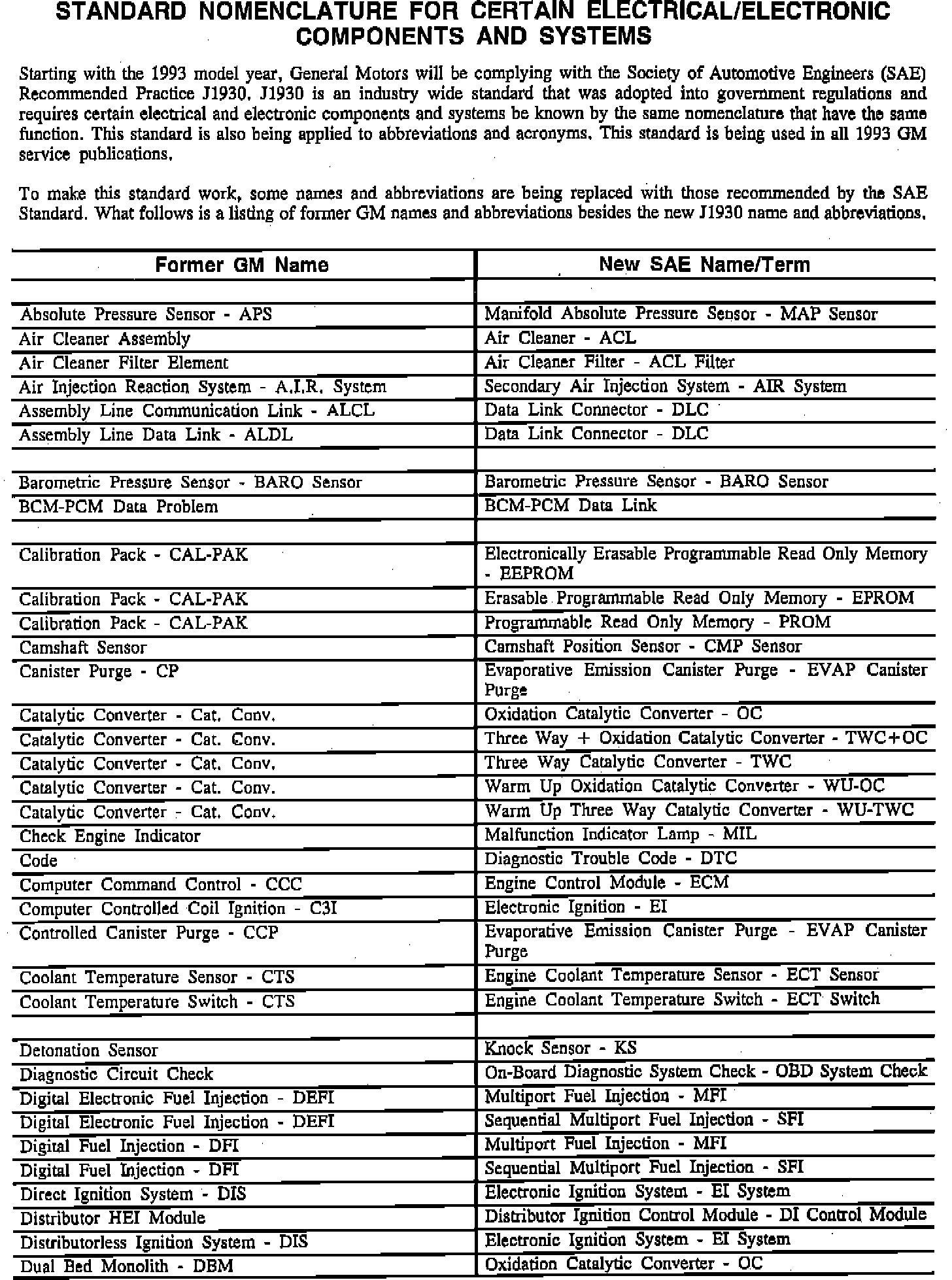

J1930 List - Part 1 Of 3:

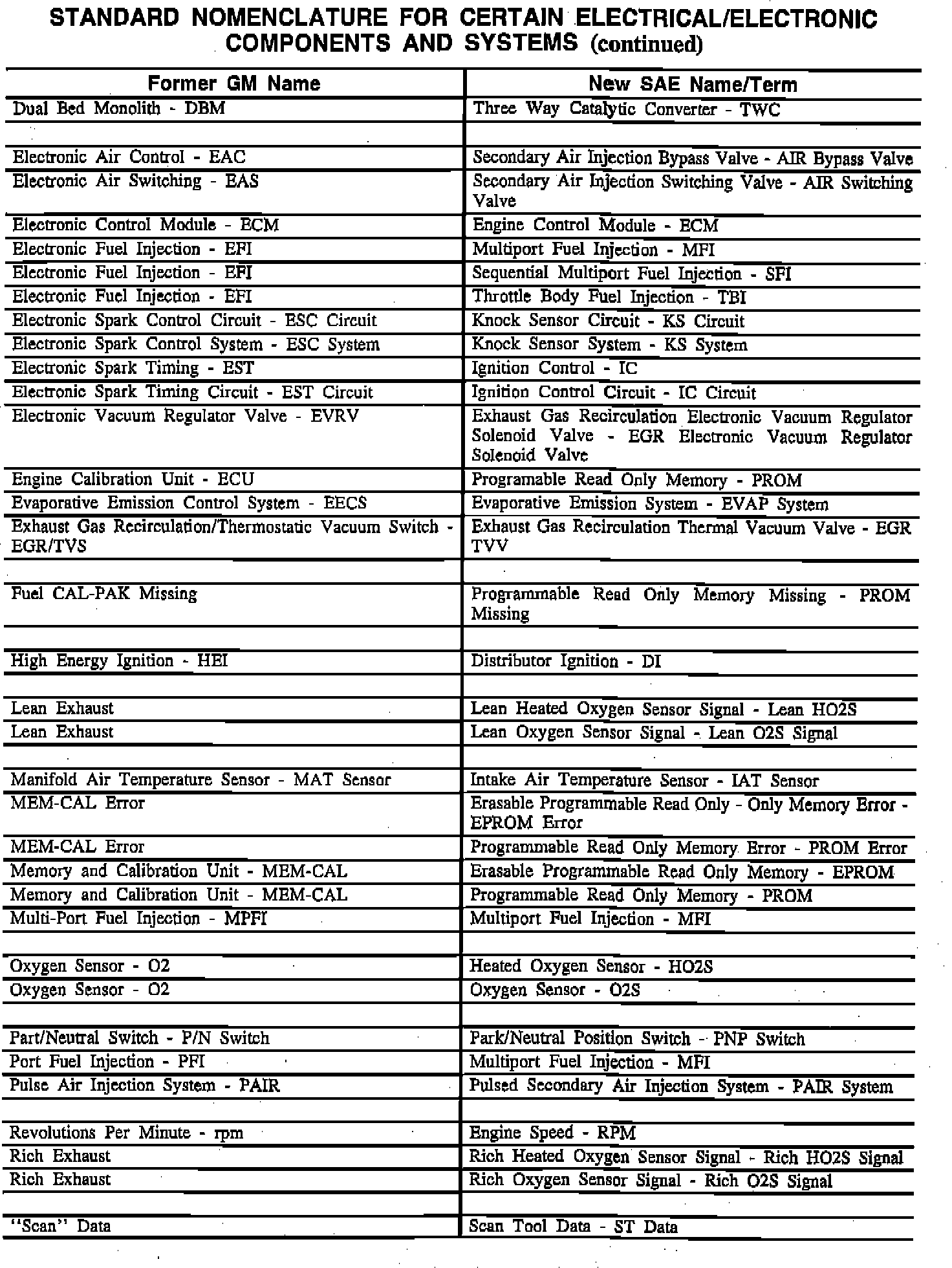

J1930 List - Part 2 Of 3:
J1930 List - Part 3 Of 3:
Starting with the 1993 model year, General Motors will be complying with the Society of Automotive Engineers (SAE) Recommended Practice J-1930. J-1930 is an industry wide standard that was adopted into government regulation and requires certain electrical and electronic components and systems to be known by the same nomenclature that have the same function. This standard is also being applied to abbreviations and acronyms.
Refer to these charts when then is a confliction of acronyms or abbreviations. The charts contain a listing of former GM names and abbreviations besides the new J-1930 name and abbreviations.
