With Standard Emissions

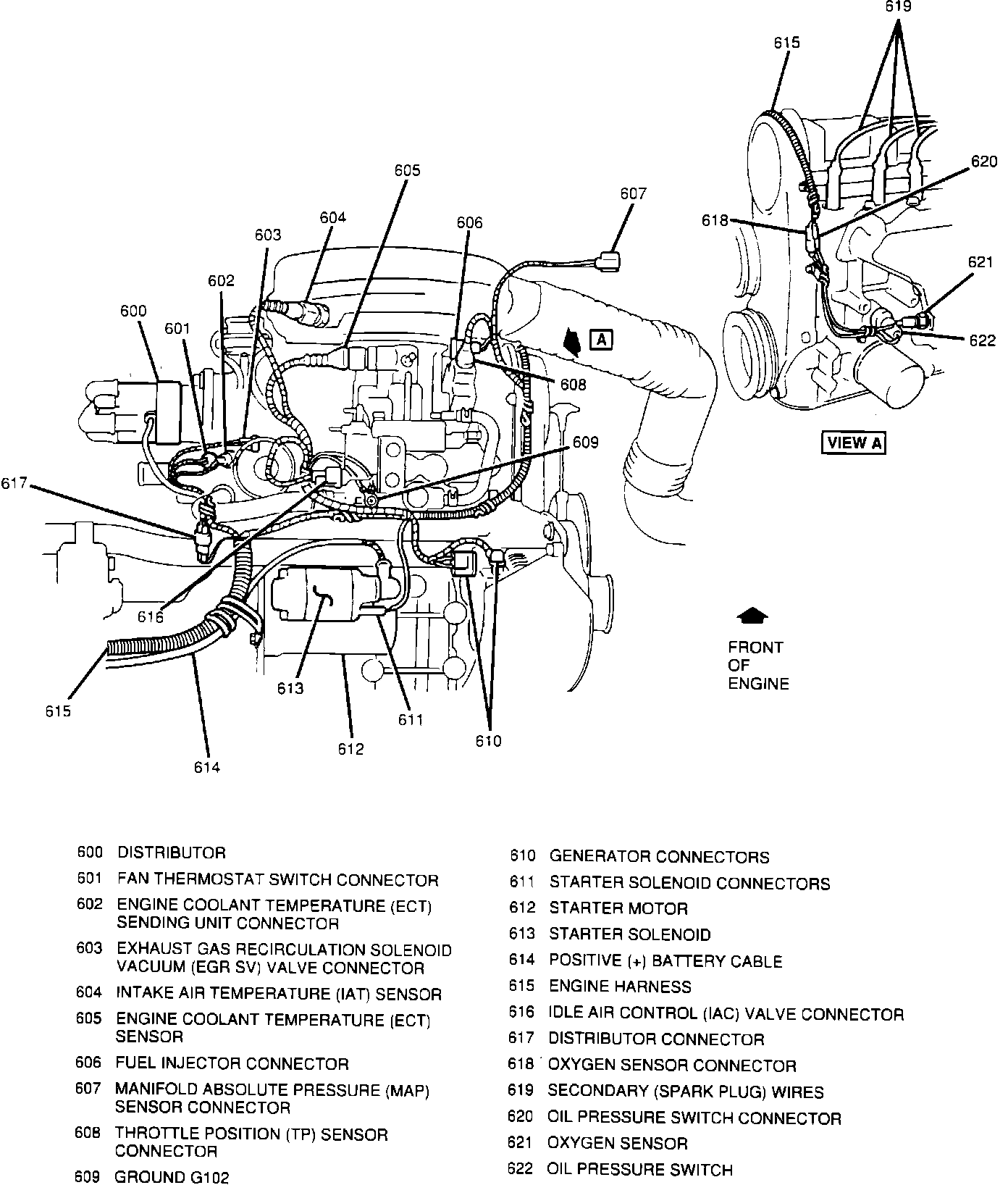

Engine Wiring 93 Metro & 94 metro W/ Std Emissions:

600 = Distributor
601 = Fan Thermostat Switch Connector
602 = Engine Coolant Temperature Sending Unit
603 = EGR Solenoid Valve (SV) Connector
604 = Intake Air Temperature (IAT) Sensor
605 = Engine Coolant Temperature (ECT) Sensor
606 = Fuel Injector Connector
607 = MAP Sensor connector
608 = Throttle Position Sensor Connector
609 = Ground G102
610 = Generator Connectors
611 = Starter Solenoid Connectors
612 = Starter Motor
613 = Starter Solenoid
614 = Positive Battery Cable
615 = Engine Harness
616 = Idle Air Control (IAC) Valve Connector
617 = Distributor Connector
618 = Oxygen Sensor Connector
619 = Secondary (Spark Plug) Wires
620 = Oil Pressure Switch Connector
621 = Oxygen Sensor
622 = Oil Pressure Switch
