Home >> Geo >> 1994 >> Prizm L4-1.8L DOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart 3

Chart 3

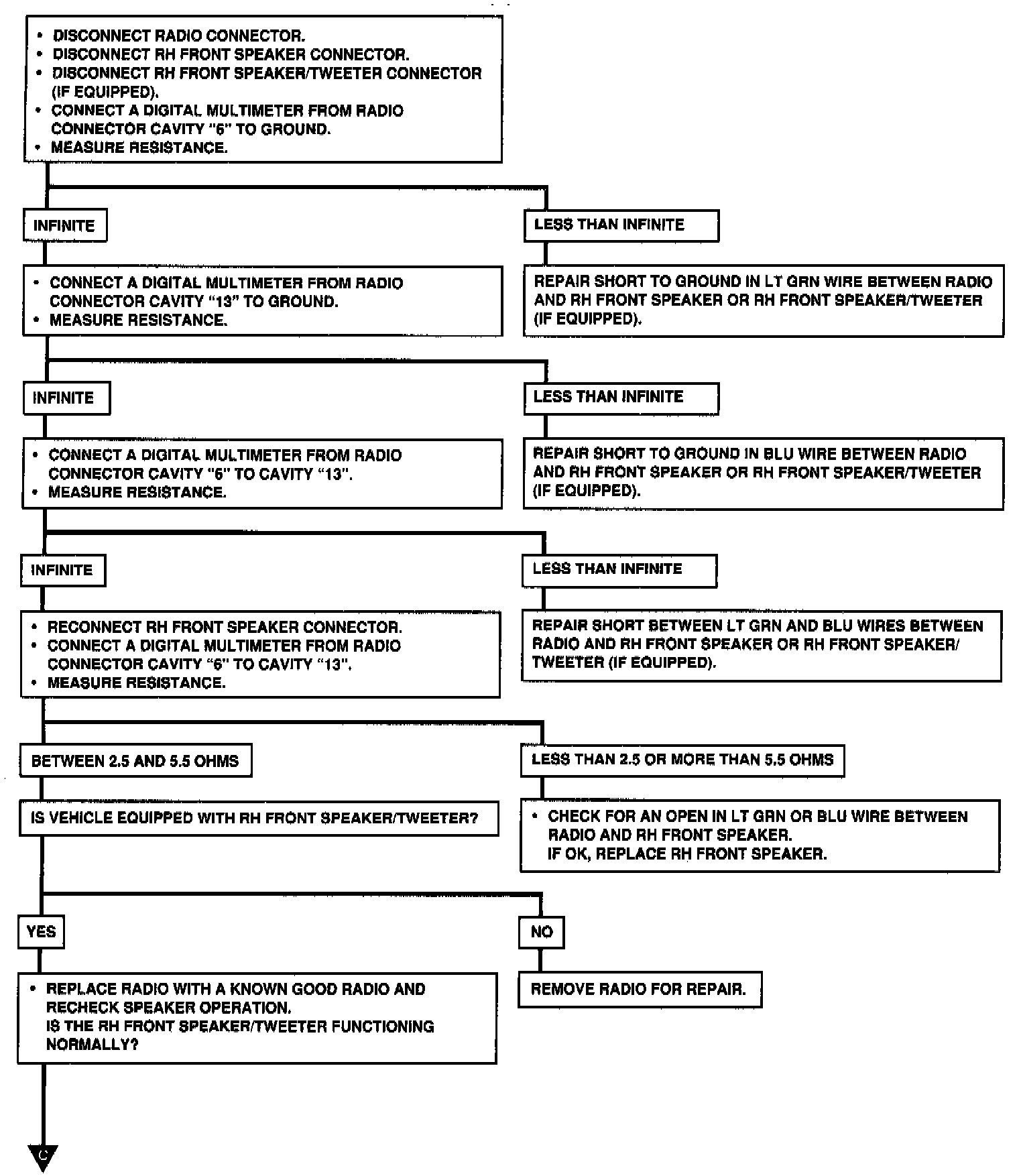

Chart #3 - RH Front Speaker(s) Is Noisy/Inoperative:



Chart #3 Continued - RH Front Speaker(s) Is Noisy/Inoperative:
