1994
>>
Prizm L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Grommet Locations
>>
P302
P302

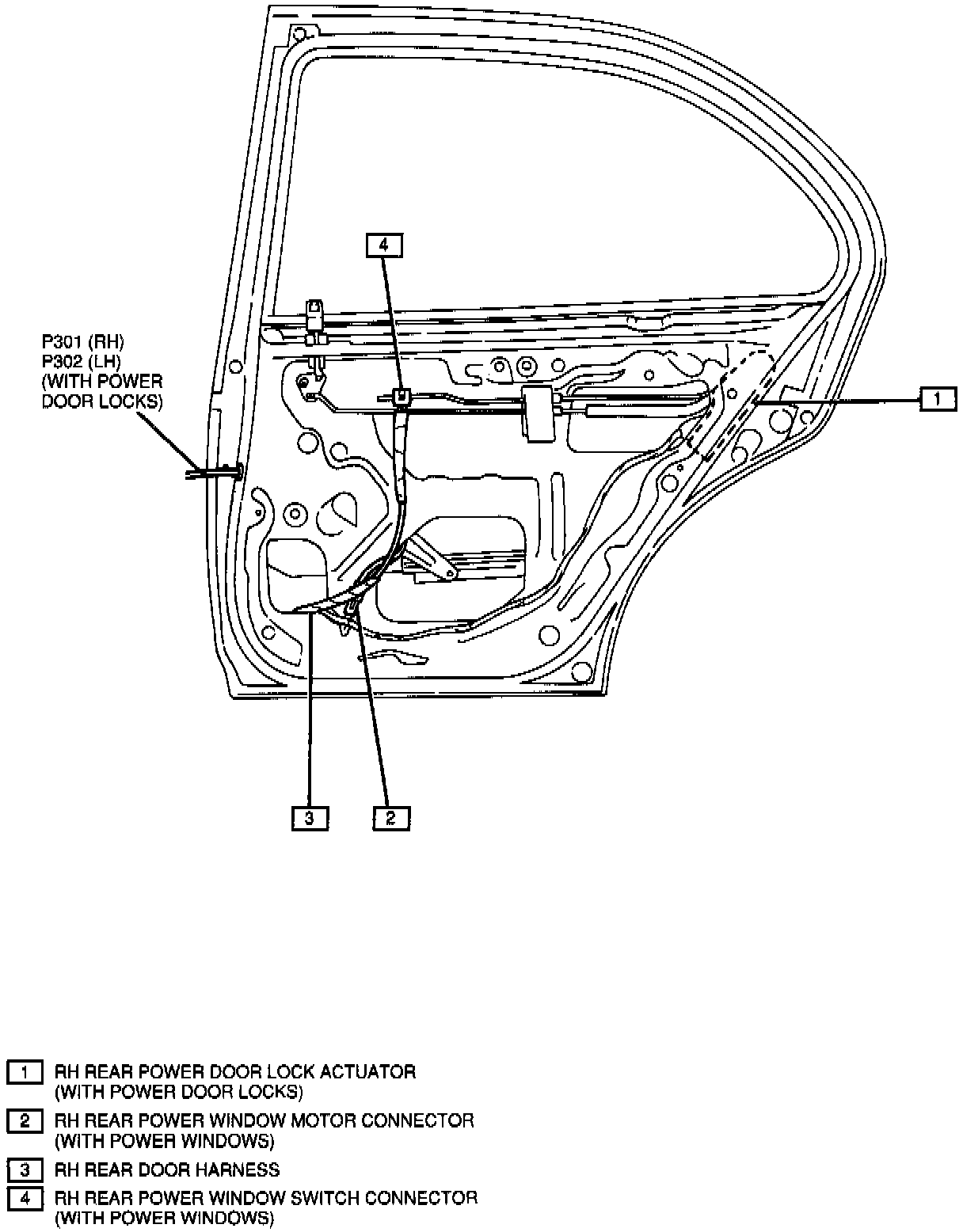

Figure A - RH Rear Door Wiring (LH Rear Door Wiring Similar):
